PWM 30Amp 1500watt DC Motor Speed Controller for 6-36V, 12V, 24V, 36V, 30A (10000839)

Name: PWM 30Amp 1500watt DC Motor Speed Controller for 6-36V, 12V, 24V, 36V, 30A (10000839)
Brand: Temu
SKU: 10000839
Price: 250.0 ZAR
Availability: InStock

12V, 24V, 36V, 30A, 1500W with Adjustable Speed, Featuring a Start-Stop Switch And a Digital Display

Product Overview

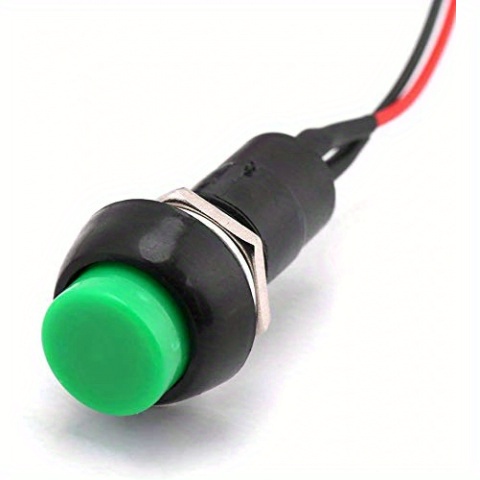

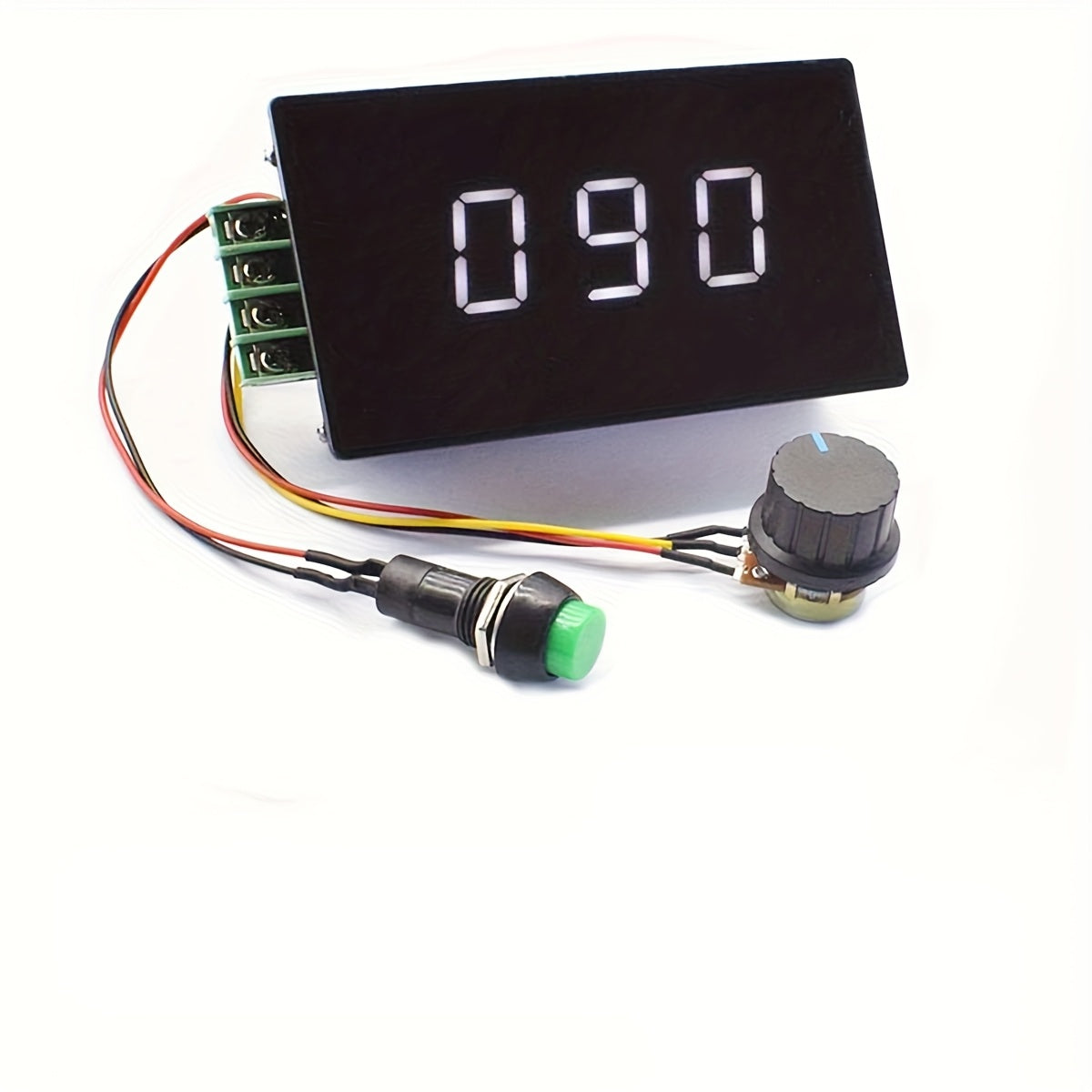

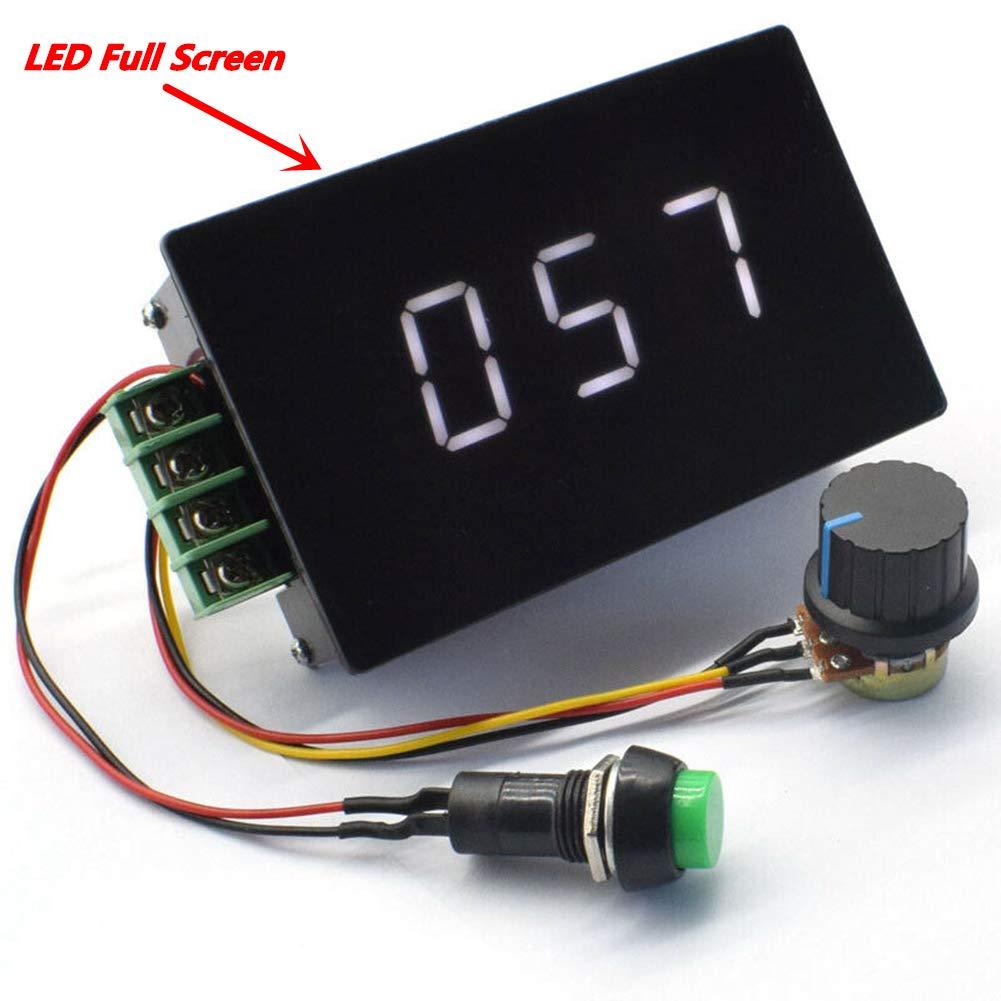

Features: Digital display showing speed percentage from 0 to 100 for accurate adjustments. Activate the start-stop switch. Designed for embedded panel installation. Operates on a wide voltage range of 6 to 60 V with a maximum of 30A.

Specifications: Input voltage: DC6-60V (the specific voltage should match the motor's rated voltage). Output voltage: Linear under load.

Output current: Ranges from 0 to 30A.

Continuous current: 20A.

Type of speed regulation: current modification.

Mode of speed control: potentiometer.

Compatible motor: brushed motor.

Direction of rotation: unidirectional.

Speed adjustment range: 0-100%.

Control frequency: 15KHZ.

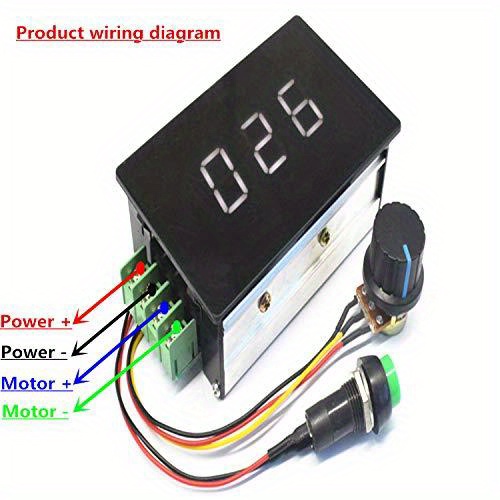

Wiring method: barrier terminals,

knob wire length: 18cm.

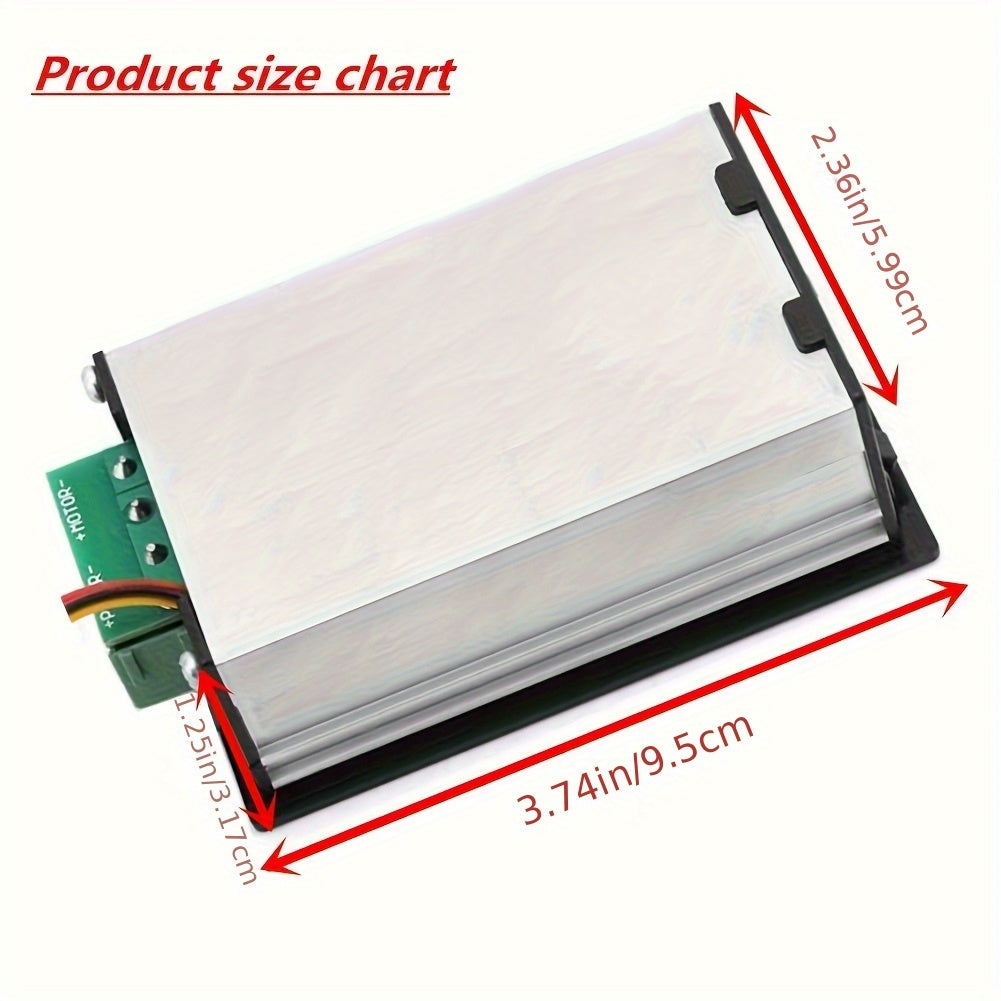

Module dimensions: length*width*height 96mm*61mm*34mm.

Weight: 120g.

Permanent setup: dimensions of 92mm by 56mm for embedded installation. The digital display indicates a range of 0 to 100 percent.

Please note that the display does not reflect the actual speed of the motor. For instance, if the motor's top speed is 5000 RPM.

At 5000 RPM, it shows 100; at 2500 RPM, it shows 50.

Note: The input voltage must be separated into positive and negative values, and 220V household electricity cannot be used. The input voltage should match the motor's rated voltage (between 6-60V). For instance, if the motor's rated voltage is 12V, input 12 volts; if it is 36V, input 36 volts.

Package Content:

1 speed controller for DC motors
