Over-discharge Low Voltage Disconnect Board Battery Charger Protection 30A 6-48v (10005418)
NOTE! supports low cut off voltages set between 10 and 11v, so it is not compatible with LiFePo4 type batteries. Only compatible with lead and Gel batteries
6-48V 30A
Description:

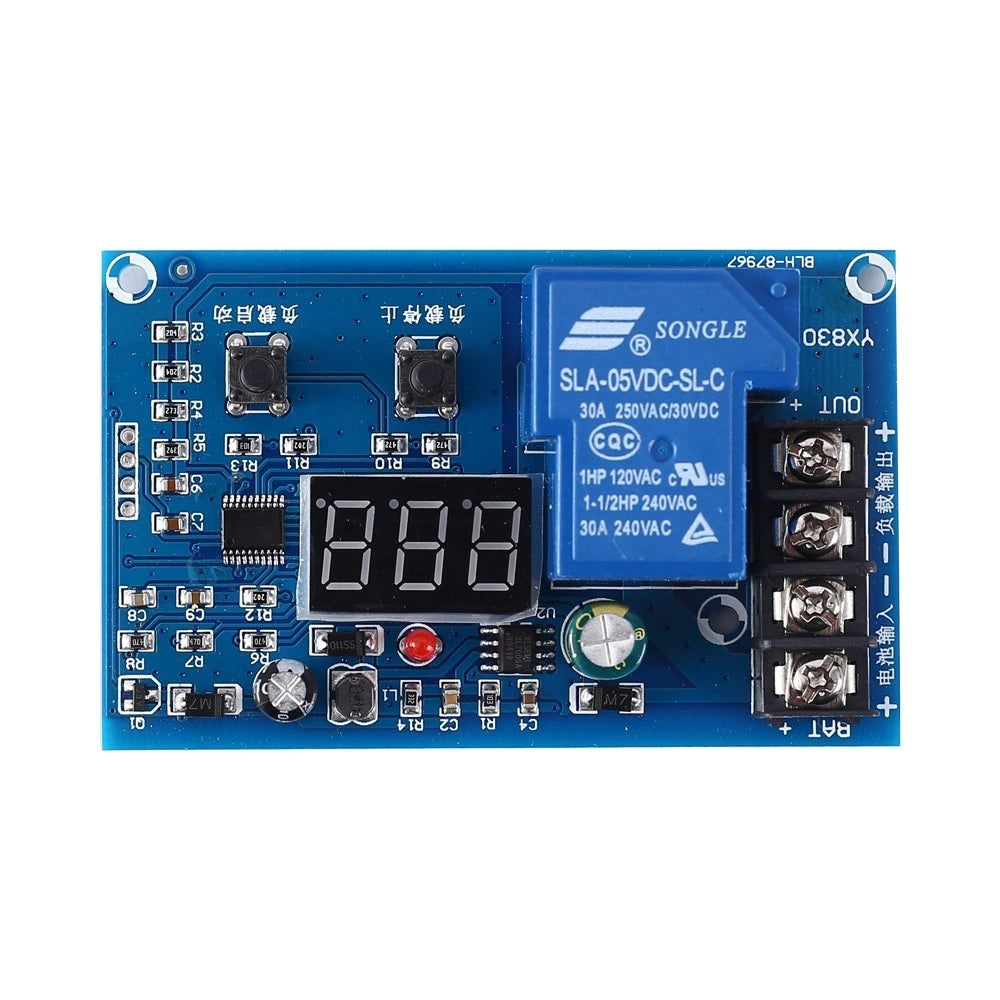

YX830 is a over-discharge protection display module. The load is automatically disconnected when the battery is under voltage, and is automatically connected when the battery is over voltage.
Feature:
Suitable for 6V-48V batteries
Battery over-discharge protection
Charging protection
Support set parameters
Real-time display voltage
Automatic recovery function
Parameter power-off memory function
Load delayed power-off protection
Parameters:
Model: YX830
Control Voltage: 6V~60V
Voltage Accuracy: 0.1V
Control Current: 30A(MAX)
Scope of Application: Storage Batteries or Lithium Batteries
Work Temperature: -25℃~85℃
Work Humidity: 5%~95%RH

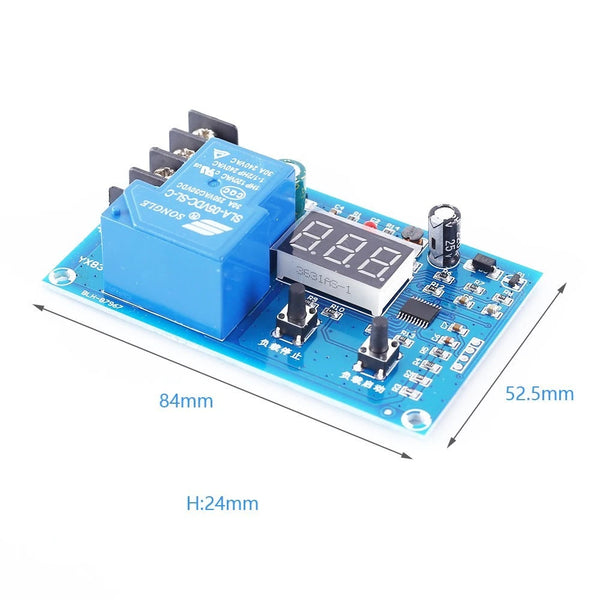

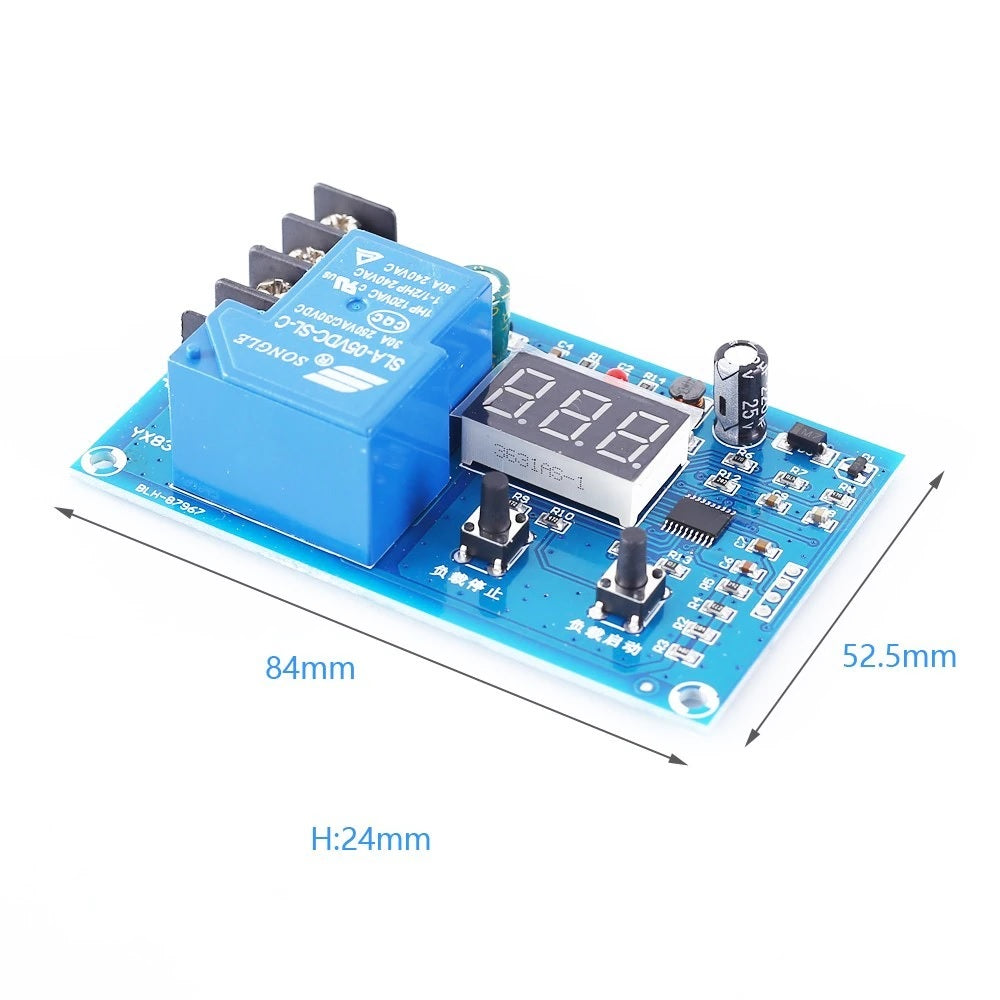

Size: 84*52.5*24mm

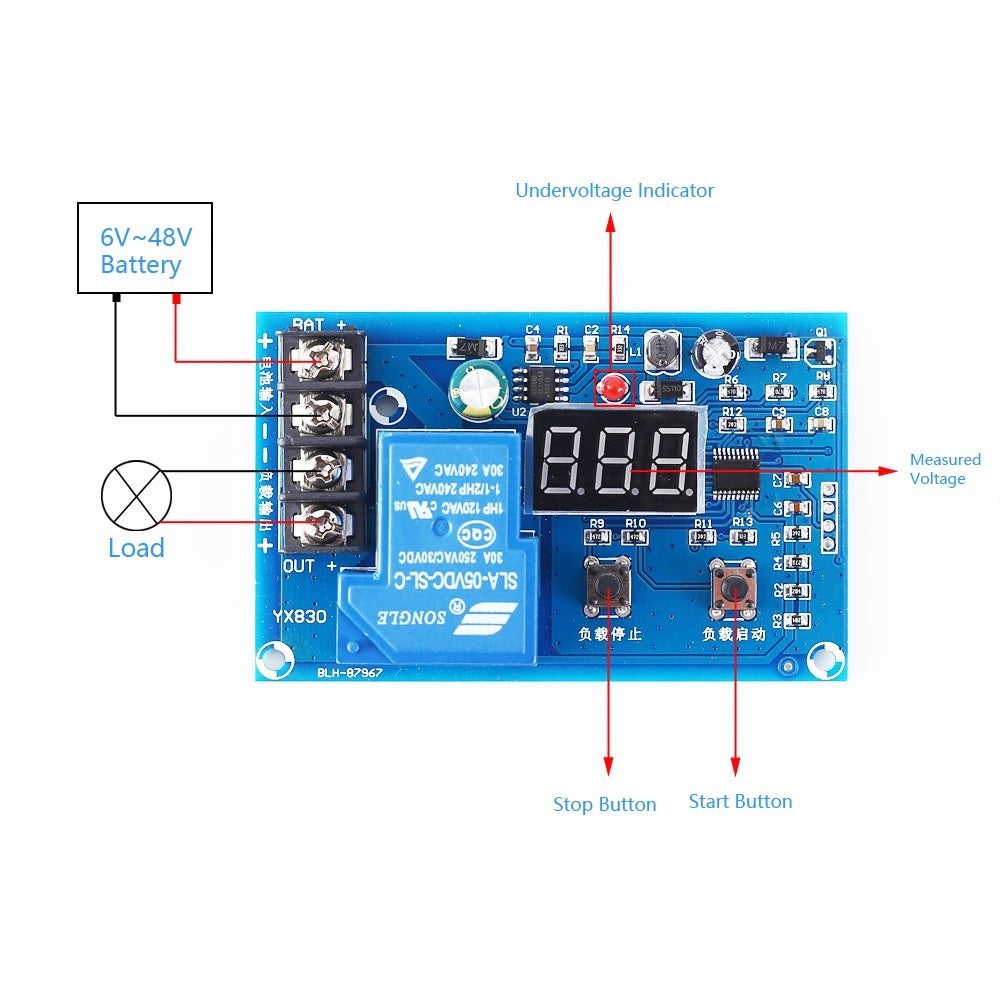

Button Setting:
| How to use voltage setting one by one ： |
| >In the normal state of setting values (i.e. when the digital tube is flashing) |
| S1 button plays the role of downward voltage adjustment (-minus voltage button) S 2 button plays the role of upward voltage adjustment (+ voltage button) |
| S1 load stop setting |
| ➢ Under normal display voltage normal state, press S1 button to display current setting load stop voltage. |
| ➢ Long press S1 key to stop the digital tube flashing, set the load stop voltage by S1 and S2 keys. |
| S2 load start setting |
| ➢ Under normal display voltage normal state, press S2 key to display current setting load start voltage. |
| ➢Long press S2 key to set the load start voltage by S1 and S2 keys when the digital tube flashes. |
| Restore the original setting |
| >Press S1 and S2 keys at the same time, the digital tube will display 888 and the original setting will be restored successfully. |
| Note: When the load stop voltage value cannot be adjusted upward, set the load start voltage value first. |
Package Contents:
1pcs Over-discharge Protection Display Module
