KTNNKG 433 Mhz DC 12V 10CH Wireless Remote Control Switch Kit 10 Relay Receiver Module + 2 RF Transmitter (10005154)
Specification:
Receiver:
Input voltage: DC 12V
Channel: 10 channel
Operational frequency: 433MHz
Encoding mode: intelligent-learning code
Output type: Passive output
Max load: 10A
Sensitivity: 105dbm
Transmitter:
Battery Type: 1pcs 12V23A
Operating Frequency: 433MHz
Vibration Resistance: 330K
Chip Type: EV1527 Modulation: ASK Encode Type: Group Coding Remote Distance: 50-100m
Function:
1. DC12V input
2. Working model: Jog-lock (Momentary)/ Self-locking/ Interlock
3. Timer Function:10s/30s/90s/120s

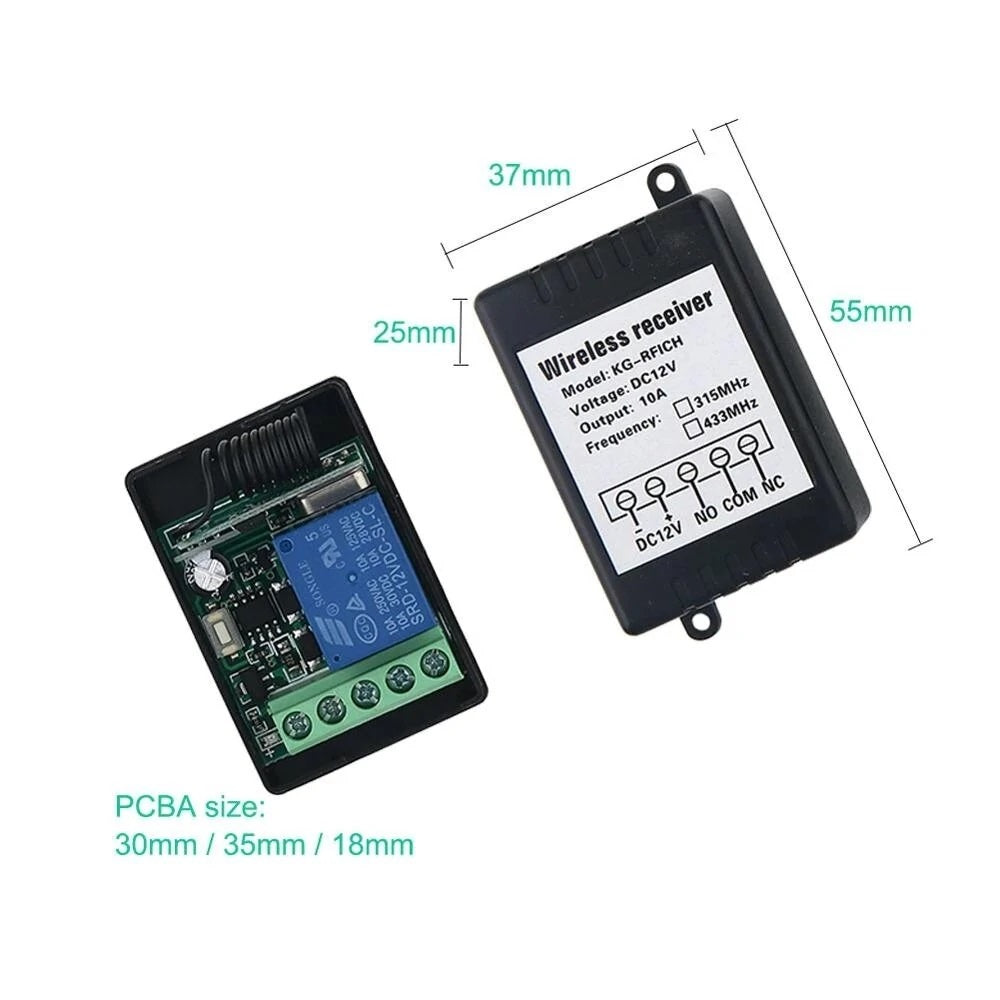

4. PCBA Size:30mm*35mm*18mm

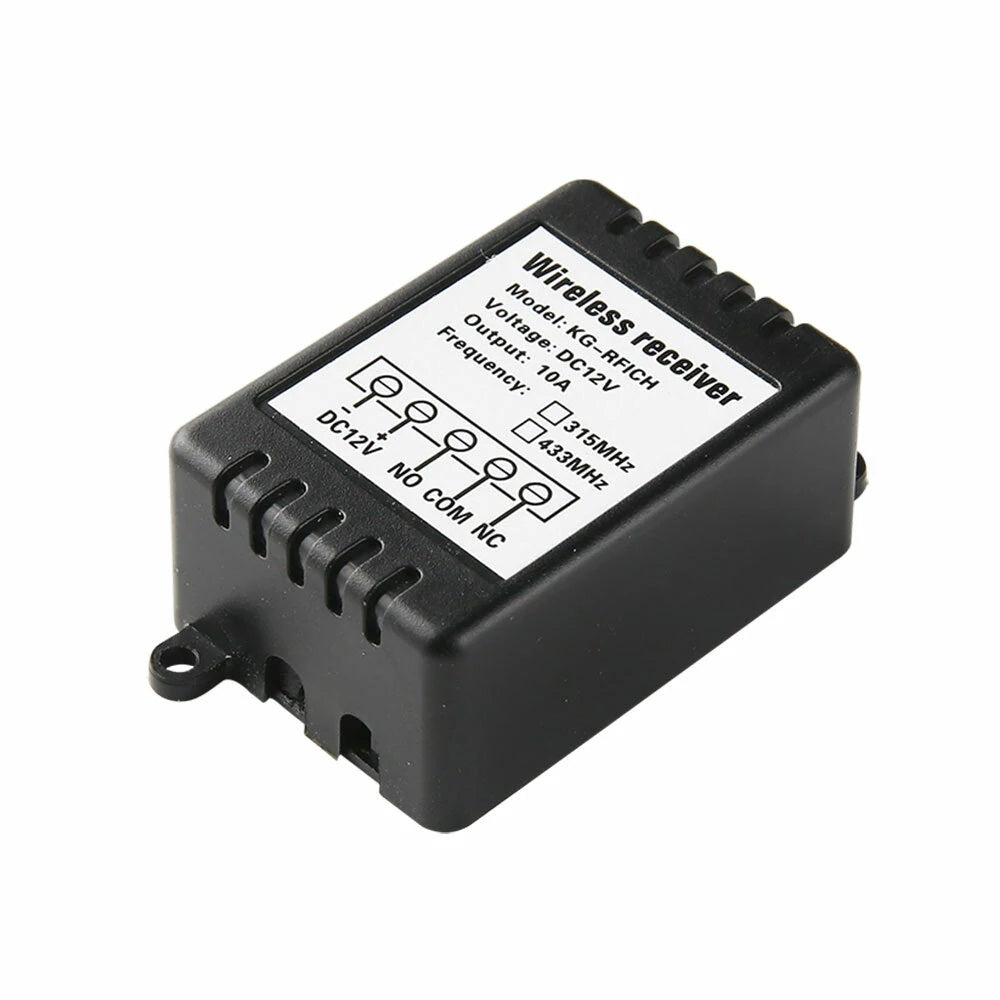

5. Cover Size:55mm*37mm*25mm
6. Can be paired with 35pcs remote control at the same time
How to set working mode:
1.How to clean code:

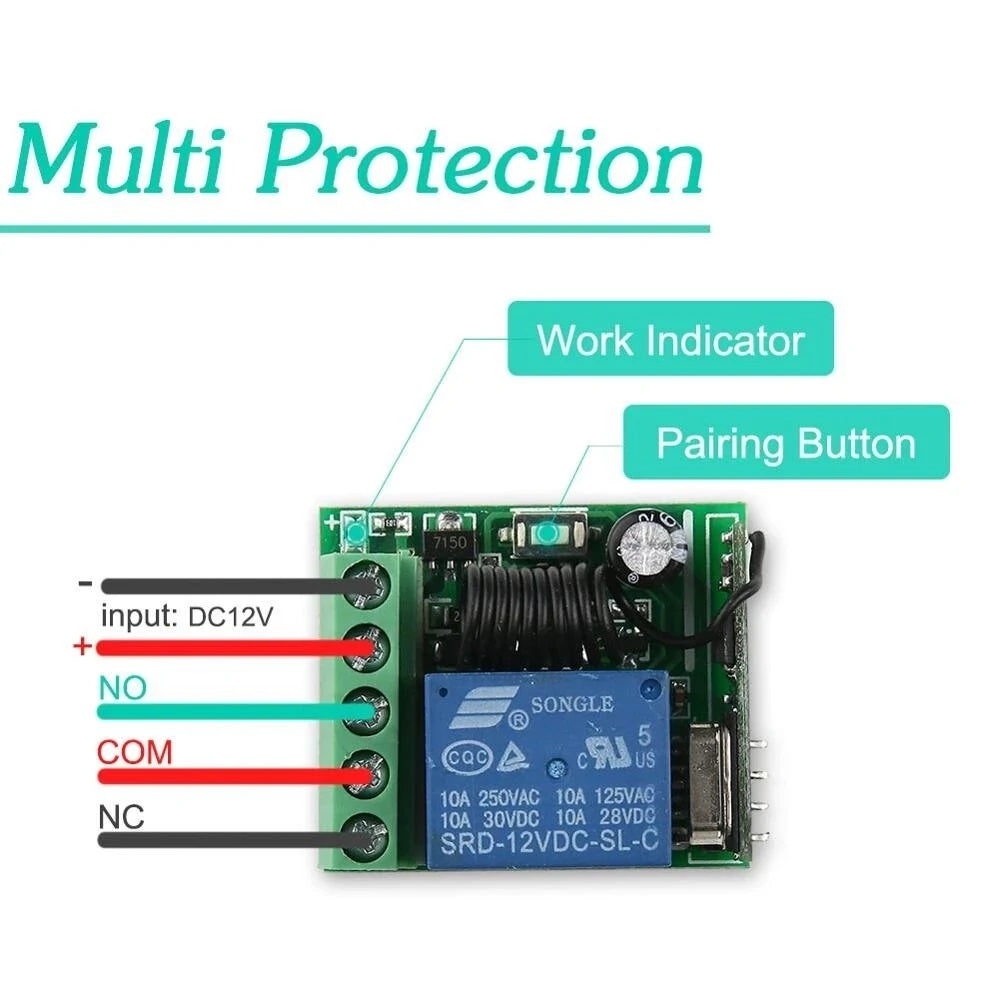

Press the Paired Button on the board 8 times, light flash, cleaning code successfully.
2.How to set the remote working mode:
Power on the switch, then...
Jog-lock(Momentary):
Press "paired button" once ,red light on, then press remote control button, red LED blinks, then off, jog mode completed
Self-locking:
Press "paired button" twice fast, red light on, then press remote control button, red LED blinks, then off, Self-locking mode completed
Interlock:(you need a remote with 2 buttons)
Press "paired button" 3 times fast, red light on, then press remote control button, red LED blinks, then off, Self-locking mode completed
3.How to set timer mode:
10s Timer: press the "paired button"4 times fast, Then press remote control button
30s Timer: press the "paired button"5 times fast, Then press remote control button
90s Timer: press the "paired button"6 times fast, Then press remote control button
120s Timer: press the "paired button" 7 times fast, Then press remote control button

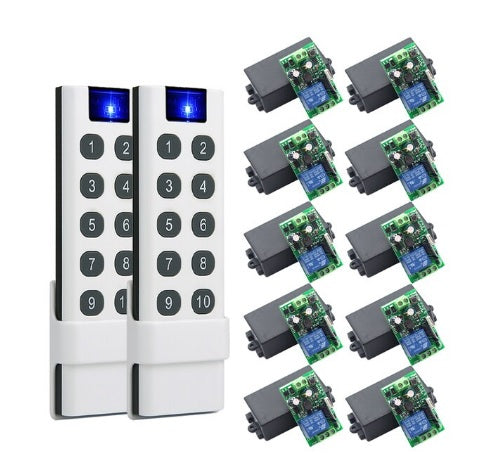

Package Contents:
2 x Transmitter
10 x Receiver
