FNIRSI DSO-TC3 Digital Oscilloscope Transistor Tester Signal Generator 3 in1 500Khz 10MSa/s Capacitor Resistor Diode 100K output (10007144)

The FNIRSI DSO-TC3 Digital Oscilloscope Transistor Tester is a must-have for any electronics enthusiast or professional. With a frequency range of up to 500Khz and a sampling rate of 10MSa/s, this device is capable of handling a wide range of testing tasks with precision and accuracy. Whether you need to test transistors, capacitors, resistors, diodes, or output signals, the FNIRSI DSO-TC3 has got you covered. Its clear and bright display allows for easy viewing of waveforms and measurements, making it a breeze to troubleshoot and analyze electronic circuits.

FNIRSI DSO-TC3 combines a digital Electronic measuring instrument, electronic component tester, signal generator, continuity test, voltage test, temperature and humidity measurement, infrared decoding and other functions are skillfully integrated. It is equipped with a 2.4-inch color TFT display, built-in rechargeable lithium battery, brings users stronger and more practical functions with good portability.

FNIRSI DSO-TC3 is an upgraded version of DSO-TC2. On the basis of DSO-TC2, it has upgraded capacitance ESR detection, function signal generator output, Electronic measuring instrument bandwidth and sampling rate improvement, input voltage and diode detection range increase and so on. The improvement in performance and function of DSO-TC3 makes the device more stable and accurate in the detection process.

Electronic measuring instrument

Real-time sample rate：10MSa/s

Analog Bandwidth：500Khz

Input resistance：1MΩ

Coupling method：AC/DC

Test voltage range：400V

Vertical Sensitivity (x1)：10mV-10V

Horizontal time base range：1us-10s

Trigger mode：Auto / Normal / Single

Trigger type：Rising edge / Falling edge

Waveform Freeze：Yes Automatic measurement：Yes

Transistor tester Triodes：β is greater than 10 and less than 600

Diodes：Forward voltage drop <4.5V Reglulated diode：0.01~32V MOSFET：JFET，IGBT，MOSFET SCRs：Turn-on voltage <5V, gate Pole trigger current <6mA TRIAC：Turn-on voltage <5V, gate Pole trigger current <6mA Capacitor：25pF~100mF Resistor：0.01Ω~50MΩ Inductor：10uH~1000mH Battery：0.1~4.5V Input voltage：0~40V DS18B20：0-85℃ DHT11：0-60℃/5-95% Infrared remote decoding：NEC protocol infrared cod

NOTE： ①Ices, Iceo, Uf are only displayed when they are valid. ② Junction capacitance and reverse leakage current are only displayed when they are valid. ③The turn-on or turn-off voltage of the FET must be less than 5V. ④ Displayed only when there is a protection of diode. ⑤Vloss is only displayed when it is valid. ⑥Two-legged components and measure the inductance when the resistance is less than 2.1kΩ.

Function Signal Generator sine wavel：1-100KHz/0-3.3V/50% Square wave：1-100KHz/3.3V/50% Pulse wave：1-100KHz/3.3V/0-100% Triangle wave：1-100KHz/0-3.3V/50% Ramp：1-100KHz/0-3.3V/0-100%

DC：0-3.3V

Package Contents:

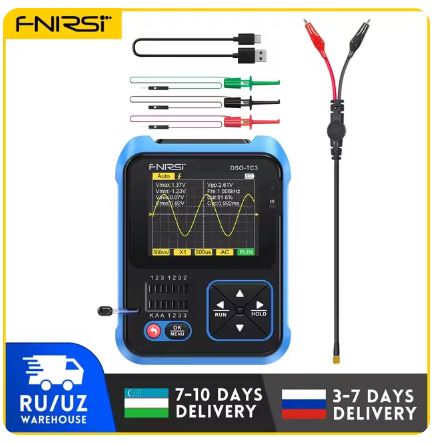

DSO-TC3 Ordinary probe*1 Test hook*3 Type-C charging cable*1 Packing box*1

Manual*1
