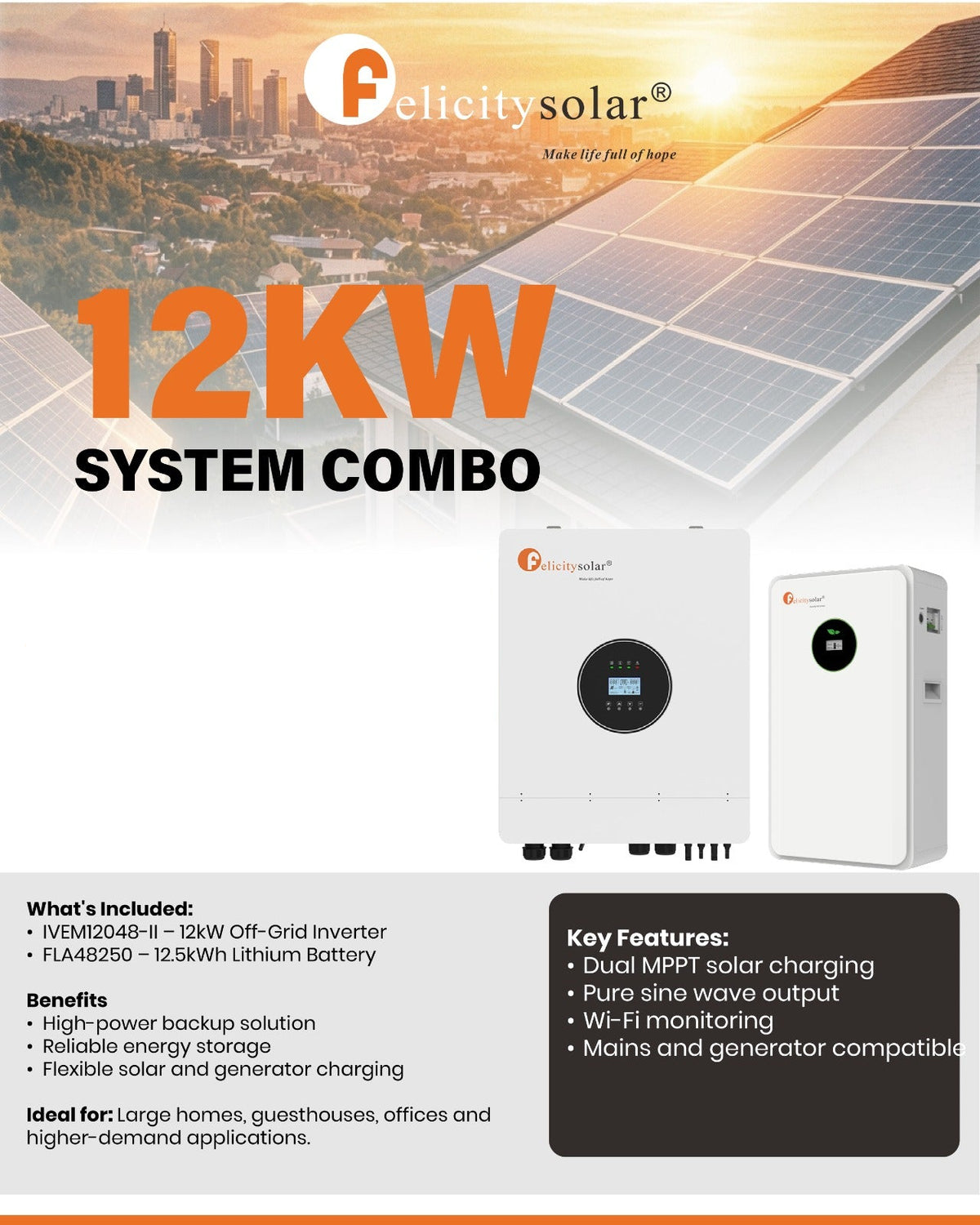

Felicity Solar 12kW 48V Inverter and Battery Combo (10008466)

Key Features:

• 12kW Off Grid Inverter
• 12.5kWh Battery Capacity
• 2 MPPT Solar Inputs
• Wi-Fi Smart Monitoring
• Mains And Generator Compatible
• Expandable System

Inverter IVEM12048-II- Model: :

Rated Output Power: 12000W

Nominal DC Input Voltage: 48V

Max. PV access power: 15000W (7500W for single PV)

MPPT Voltage Range: 90~450V

Parallel Capability: Yes up to 6 units

Communication Interface: RS485, CAN

Battery - Model: FLA48250:

Battery Type: LifePO4

Nominal Capacity: 200A

Nominal Energy: 12.5kWh

Nominal Voltage: 51.2V

Operating Voltage: 44.8~57.6V

Max. Continuous Charge/Discharge Current: 150A

Depth of Discharge (DOD): 80%

Cycle Life: +-6000

Package Contents:

1x 12kW Inverter

1x 12.5kWh Felicity Solar Battery

 Warranty: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
