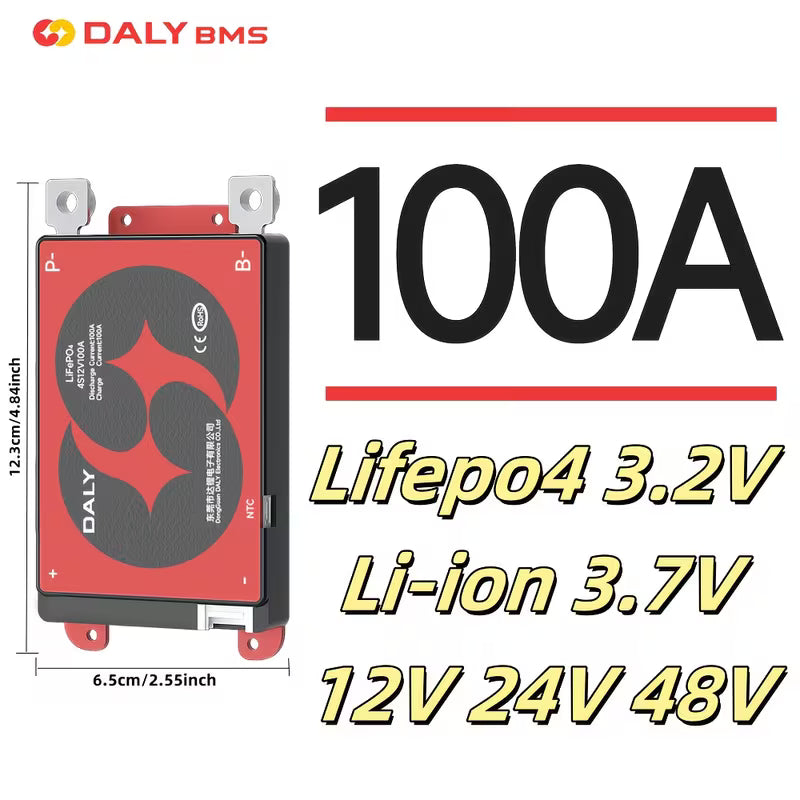

Daly 3.2V LiFePo4 8S 24V 100A Battery Protection Board BMS with Balance (10004989)

The Daly 3.2V LiFePo4 8S 24V 100A LFP PCM battery protection board BMS ensures your lithium iron phosphate battery stays safe and balanced during charging and discharging. With a high current rating of 100A, this BMS is perfect for larger battery setups.

Model: DL8S (3.2V Rated LiFePO4 Battery bms not for 3.7V rated Li-ION Battery bms) common Version : common port for charge/discharge

1. Overview
◆DL8S 24V 100A 500A PCB is used for 8 series 24V lifepo4 battery pack.
◆We can design it for various lithium batteries like LiFepo4, LiMn2O4, and Li-polymer etc.

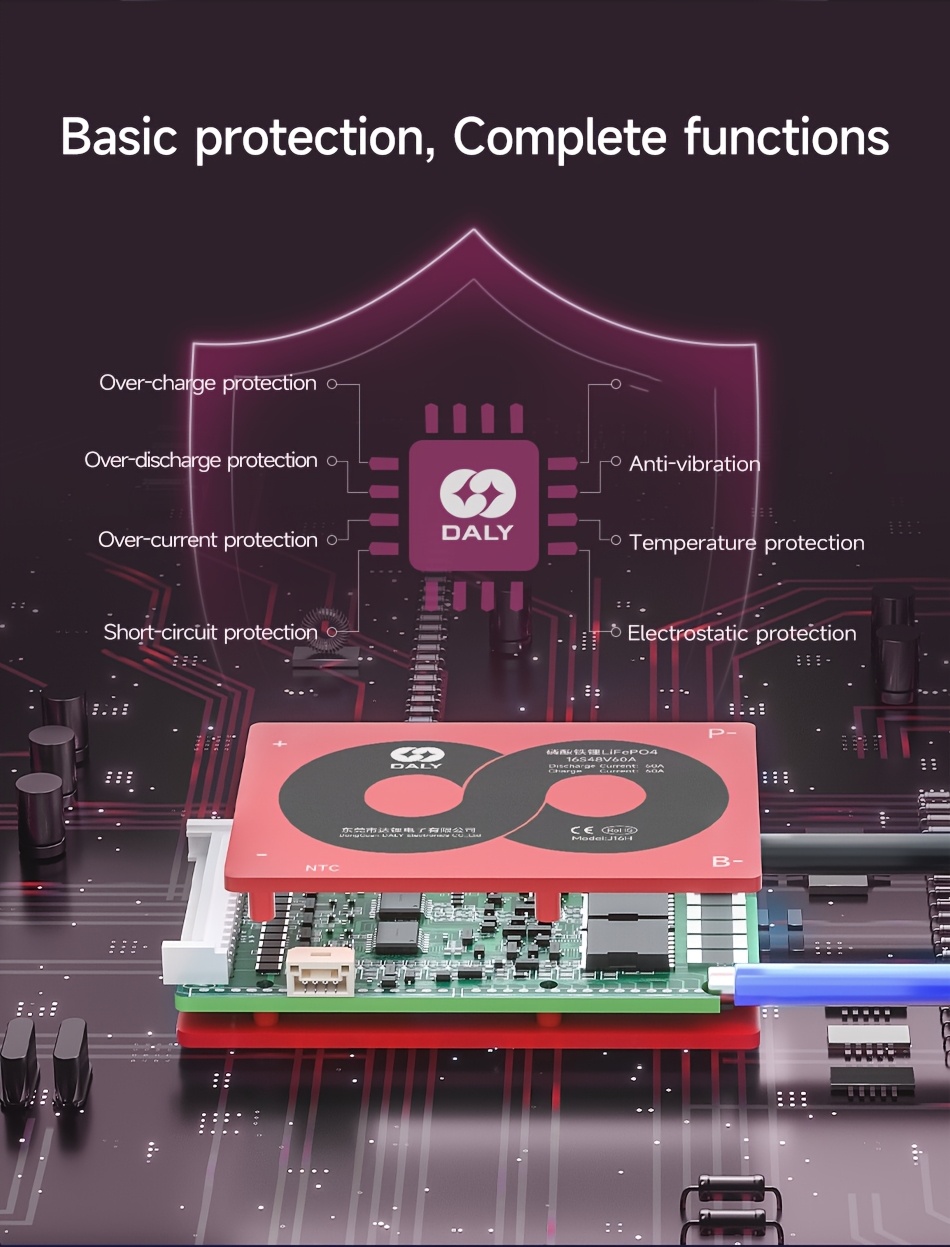

◆The main functions are: over charge protection, over discharge protection, over current protection, short-circuit protection, temperature protection etc.
◆According to the customer request we can develop PCM in different sizes and structures.
◆BMS manufactured by high quality Mos and IC imported . Keep your battery long cycle service life time.

2. Advantage
◆Use top quality (A-level) protective integrated circuit IC, from the solution of Seiko of Japan.
◆Strong load ability, constant discharge current 15A 80A 100A 120A 150A 200A 500A, use high voltage resistance, low inner resistance power Mosfet. The heat sink will greatly help cooling.
◆IC itself has power balancing function. The circuit is simple and reliable.
◆Typical voltage detection for each cell. So each battery will be prevented over charged or over discharged. Over current and short circuit protection function is very reliable. Long time short circuit of the load won’t affect the PCB and the battery. Temperature protection during charging and discharging.
◆Extreme low power consumption. The consumption of the whole device is less than 50uA.
◆PCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating.
