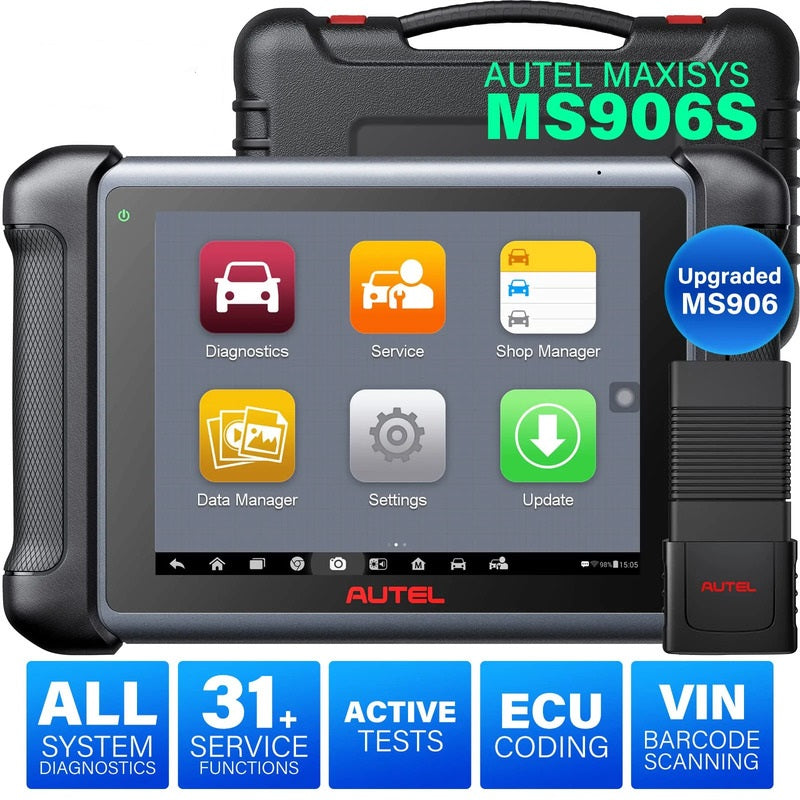

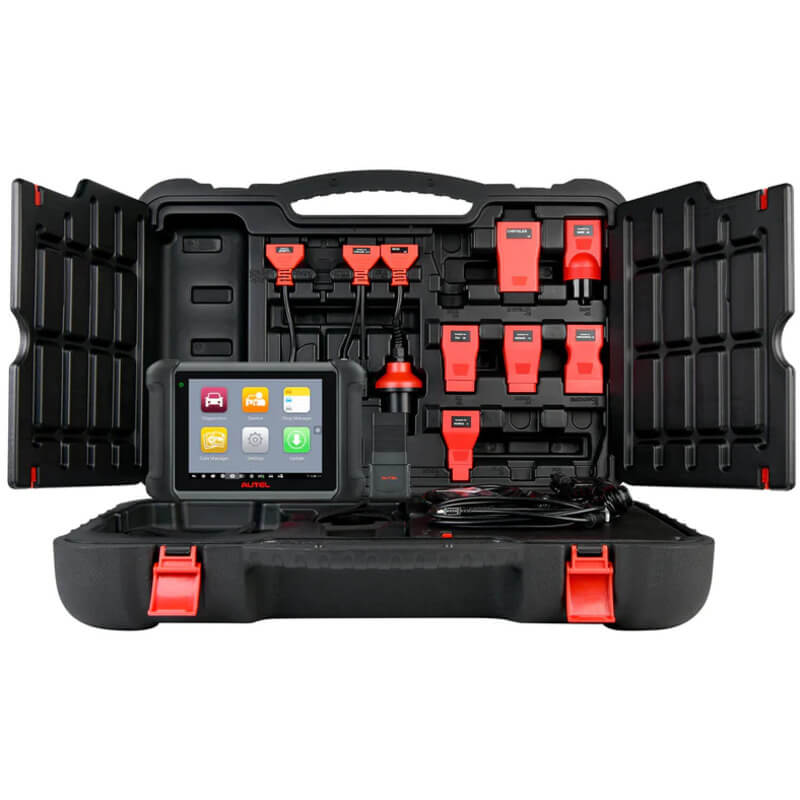

Autel MaxiSys MS906S Diagnostic Scanner Tool | 31+ Service Functions (10005721)
Description
-
Upgraded Version of MS906 – MS906S Supports long-distance wireless communication, it’s more convenient; the rechargeable 10000mah 3.7V high capacity battery is more durable and it supports Remote Expert Services.
-
OE-Level Diagnosis – MS906S can get OE-level analysis of ECM, transmission, ABS, airbag, SAS, DPF, EVAP, TPMS, BMS, EPB among other on-board systems. You can read and clear their codes to turn off warning lights; check freeze frame data and view live stream in graph to evaluate the vehicle’s health at a glance.
-
31+ Service Functions – Autel MS906S has 31 service function options, mainly including Oil Reset, EPB service, TPMS ID Relearn, ABS Auto Bleed, SAS Calibration, DPF Regeneration and more.
-

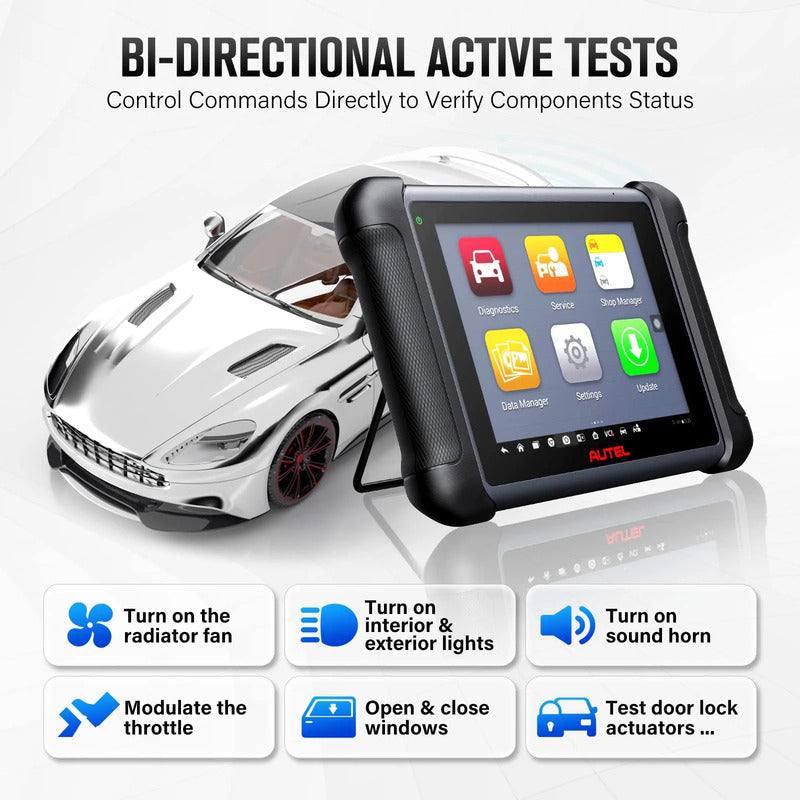

Advanced Functions – As a bi-directional scan tool MS906S allows you to send control commands directly to verify system components’ status effortlessly in seconds.
Specifications
| Operating System: |
Android™ 4.4.2, KitKat |
| Processor: |
Samsung Exynos 5260 hexa-core（2*A15 1.7G + 4*A7 1G） |
| Memory: |
2 GB RAM & 64 GB ROM |
| Display: |

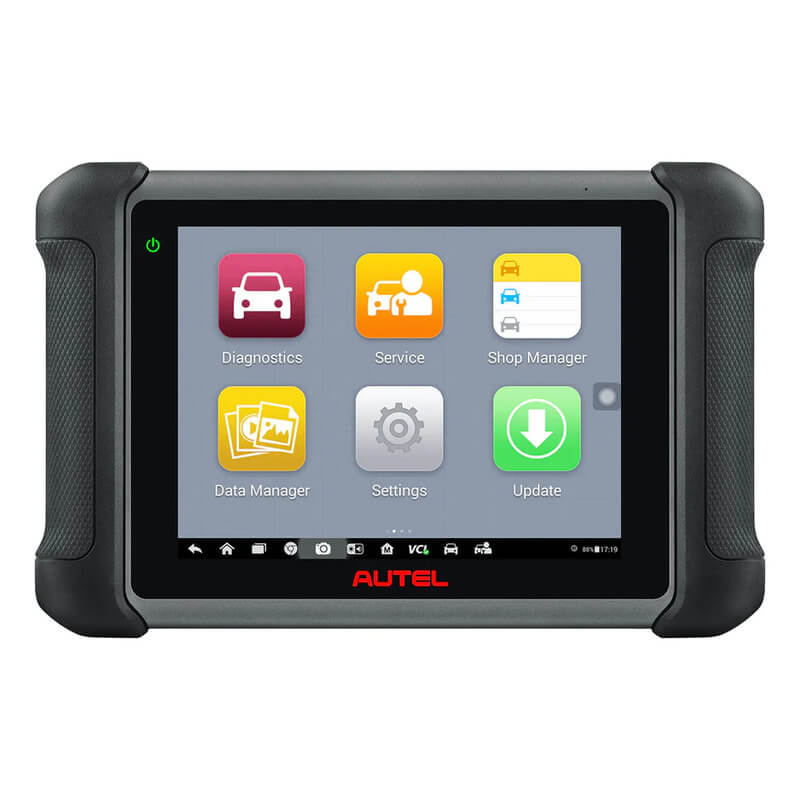

8.0″ LED capacitive touch screen with 1024×768 resolution |
| Connectivity: |
• Wi-Fi (802.11 b/g/n)USB: 2.0, Mini USB 2.0 Wireless BT V2.1+EDR Class1, HDMI 1.4a SD Card (support up to 32 GB) |
| Camera (rear): |
Rear-facing, 8.0 Megapixel AF with Flashlight |
| Sensors: |
Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output: |
• Microphone • Single Speaker • 3-Band 3.5 mm stereo/standard headset jack |
| Power and Battery: |
10,000 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply |
| Input Voltage: |
12 V (9-35 V) |
| Power Consumption: |
5 W |
| Operating Temp: |
-10 to 55°C |
| Storage Temp: |
-20 to 70°C |
| Dimensions (W x H x D): |
270.8 mm x 176.0 mm x 36.0 mm |
| Weight: |
NW: 1.05 kg |
Features
- Unique ergonomic design with rubberized outer protection and a rugged internal housing.
- Built-in rechargeable lithium-polymer battery for up to 14 hours of continuous operation.
- USB, audio and auxiliary ports make it easy to connect accessories.
- Open source Android Operating System for fast boot-up and multitasking.
- Easy and intuitive navigation makes finding what you need simple and fast.
- The most extensive complete system coverage for more than 80 US, Asian and European makes and models.
- Exceptional OE-Level functionality from comprehensive OBD II diagnostics & services to advanced ECU coding.
- Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc.
- Smart Auto VIN technology for identifying vehicle easily.
- Automatic system and software updates with real-time push message notifications via internet.
- Instant remote control tech support anytime, anywhere.
- Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes.
- Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors.
- One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized.

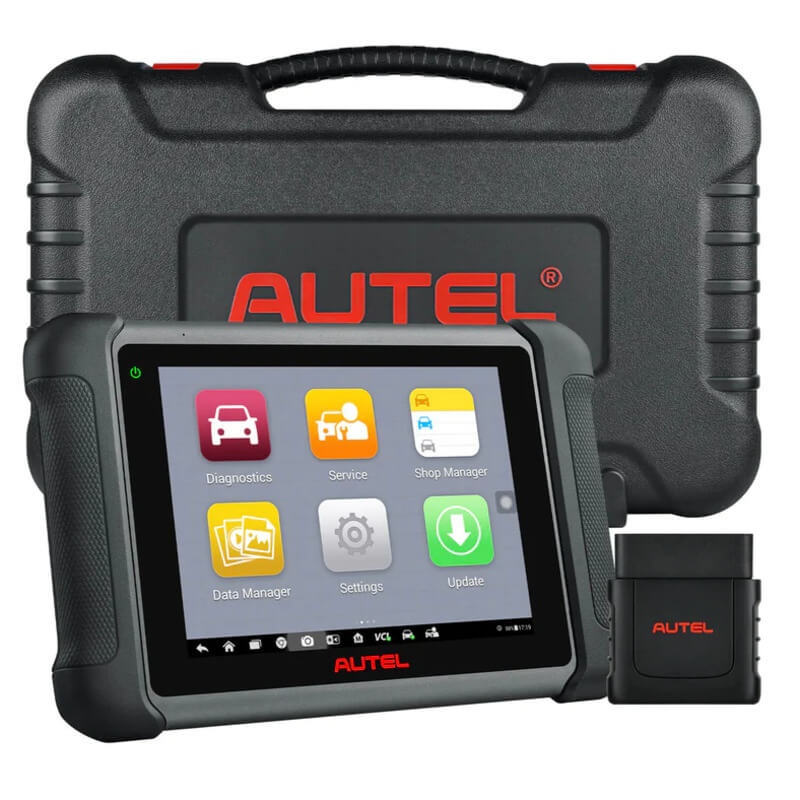

- Enhanced wireless BT connectivity between the display tablet and VCI device allows greater mobility and ease at work.
- Convenient data management system for managing internal program applications and reviewing data.
Autel Maxisys MS906S Add-on Functions
-
MS906S connects to a MV108 / MV105 inspection camera and turns into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.
-
MS906S works with Autel MP408 oscilloscope providing you an insight to the inner workings of a vehicle’s electronic circuits. Featuring the user-friendly UI design combined with the unrivalled hardware specs, is able to measure and test virtually all the electrical and electronic components and circuits in any modern vehicles.
