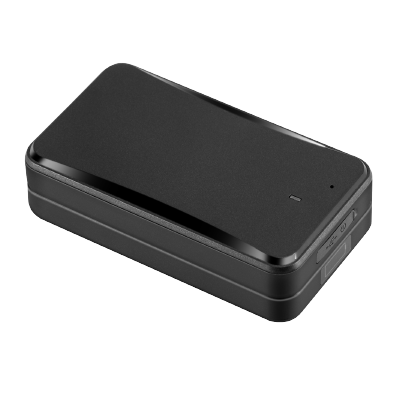

AT4 Long Life Battery DIY No-Contract Portable Mobile App GPS Tracker - Real-Time Tracking for Vehicles, People, and Assets (10007651)

(No Contract - First Year Use on Tracking Platform FREE)

The advanced features, rugged construction, and industry-leading battery life make the AT4 the new state of the art in asset GPS tracking. Using GPS and LBS positioning, the magnet-mounted AT4 gives detailed reports telling you exactly where a vehicle has been, where it’s headed and how fast it’s traveling. The internal mic allows for audio monitoring of the environment. With a 10,000mAh battery and IPX5 waterproof rating, the AT4 puts you in total control of individual vehicles or fleets.

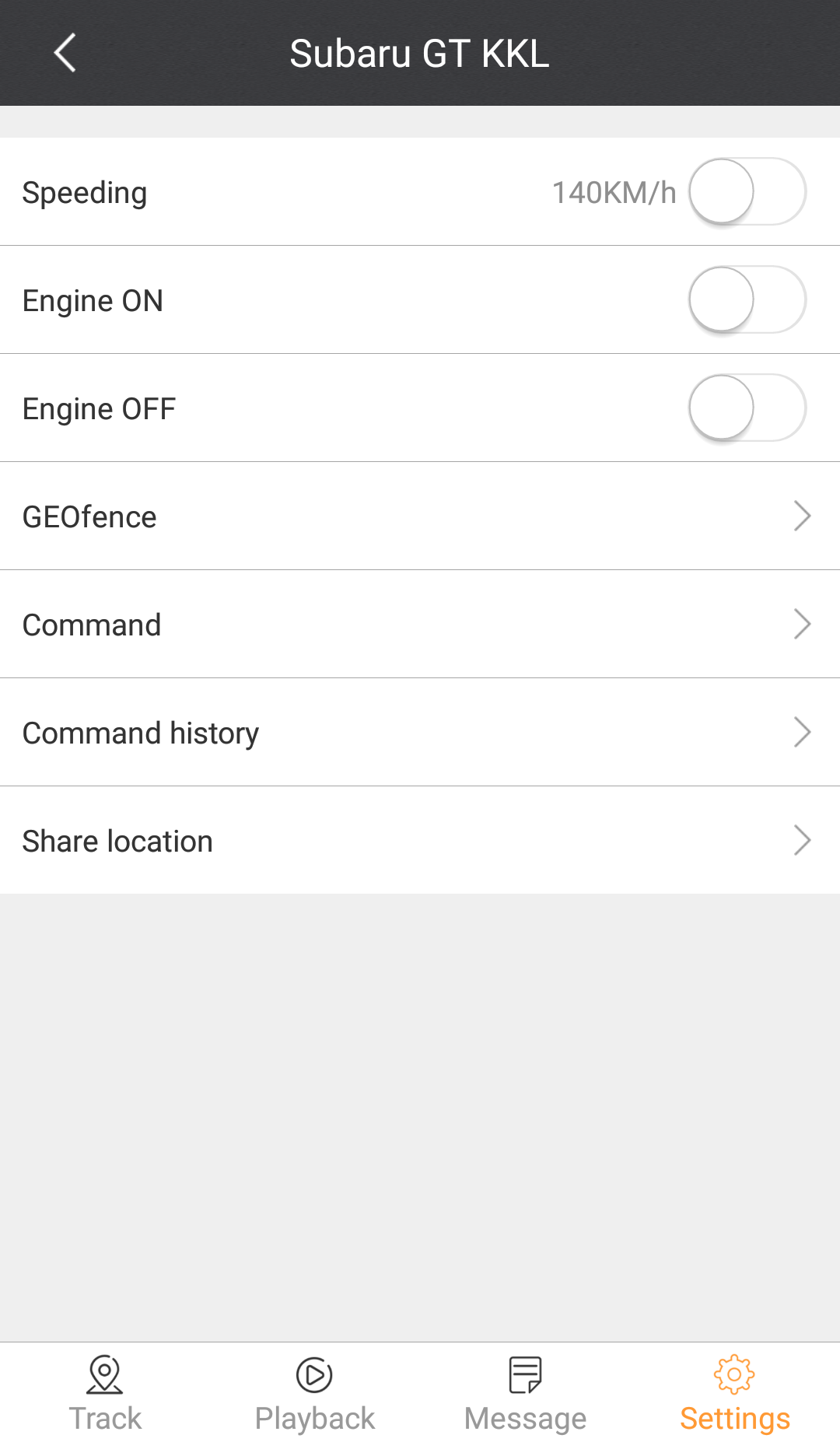

Live Tracking Platform User Manual

GNSS
Positioning system	GPS+LBS
Positioning accuracy	＜2.5m CEP
Tracking sensitivity	-165dBm
Acquisition sensitivity	-148dBm
TTFF (open sky)	Avg. hot start ≤1sec Avg. cold start ≤32sec
Cellular
Communication network	GSM
Frequency	Quad-band 850/900/1800/1900 MHz
Power
Battery	10,000mAh/3.7V industrial-grade Li-Polymer battery
Working modes	Mode 1: Tracking mode Mode 2: Power-saving mode
Standby time	Up to 1.5 years in power-saving mode
Interface
LED indication	1 status indicator (Red), 4 battery indicator (Blue)
SIM	Standard-SIM
Data storage	32+32Mb
Tamper proof	Pressure-sensitive button
Physical specification
Dimensions	108.0 x 61.0 x 30.0mm
Weight	285g
Operating environment
Operating temperature	–20℃ to +70℃
Operating humidity	5%～95%, non-condensing
IP rating	IPX5
Feature
Voice monitoring range	≤3 meters
Sensors	Accelerometer

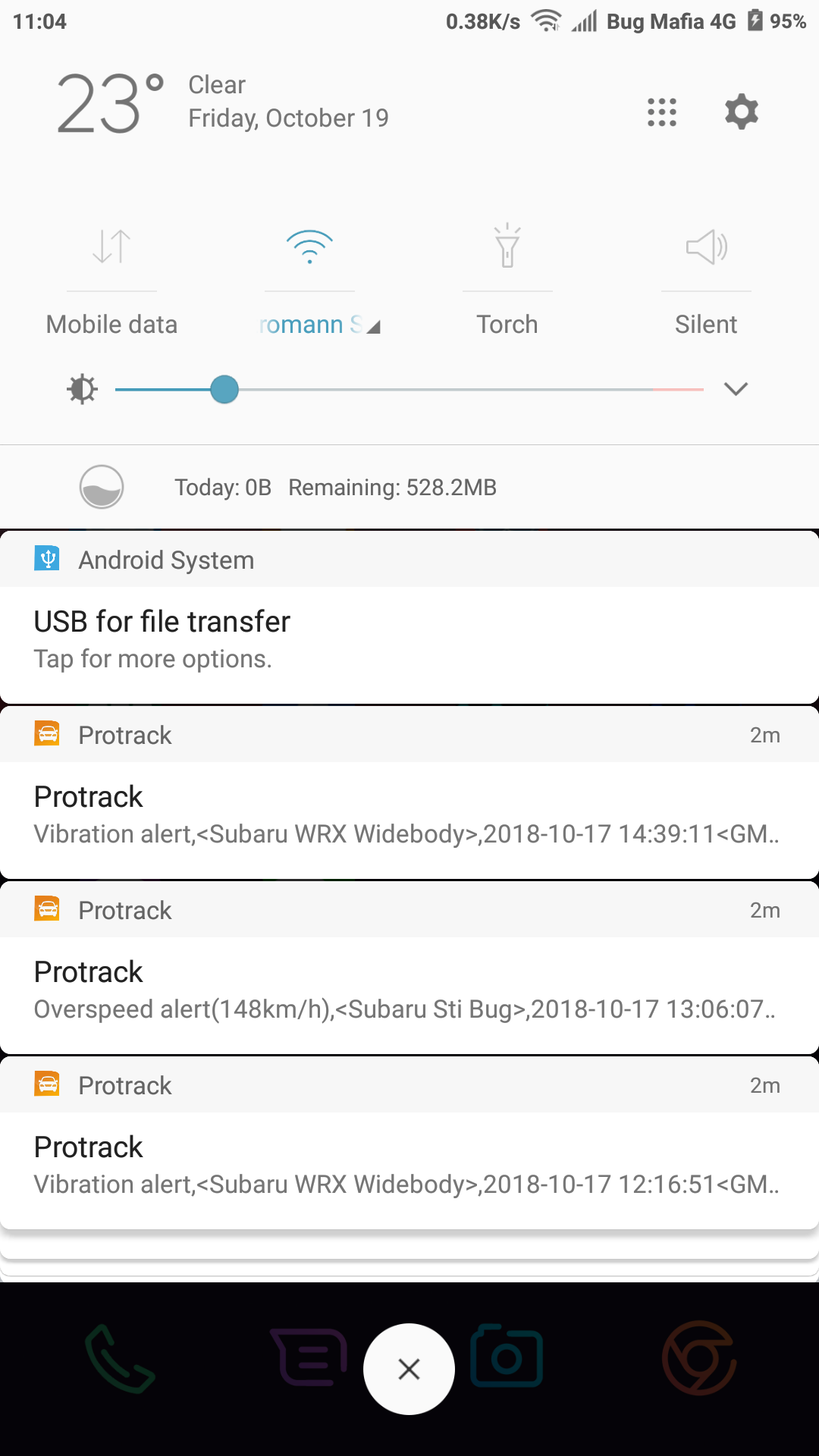

Scenarios	Low battery alert, Tamper alert, Vibrating Alert, Over-speed alert, Cover removal alert, Power off alert, Geo-fence
