PC Polycarbonate, No Battery Included, Compatible with Gasoline Powered Boats, Boat Electrical System| Sleek Red Housing| Durable PC Material
Details:
Item Category:
Battery Disconnect Switch Material Composition: ABS and copper
Condition: Completely New Terminal

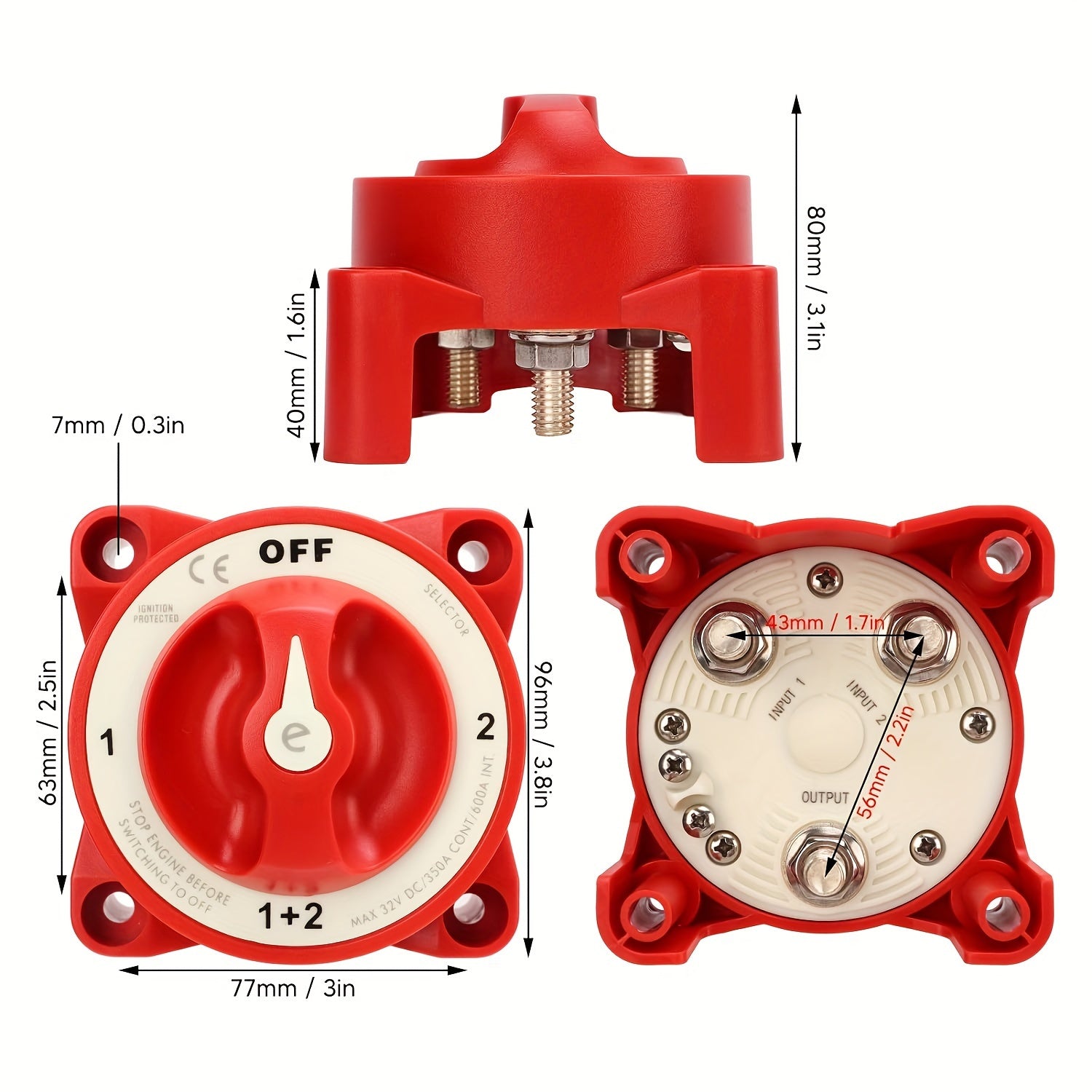

Stud Dimension: 3/8" - 16 Maximum
Voltage: 32V DC Continuous
Current Rating: 350A
Switch Settings: OFF-1-2-1 and 2 Switch
Category: 4 Position Selector
Color: Red

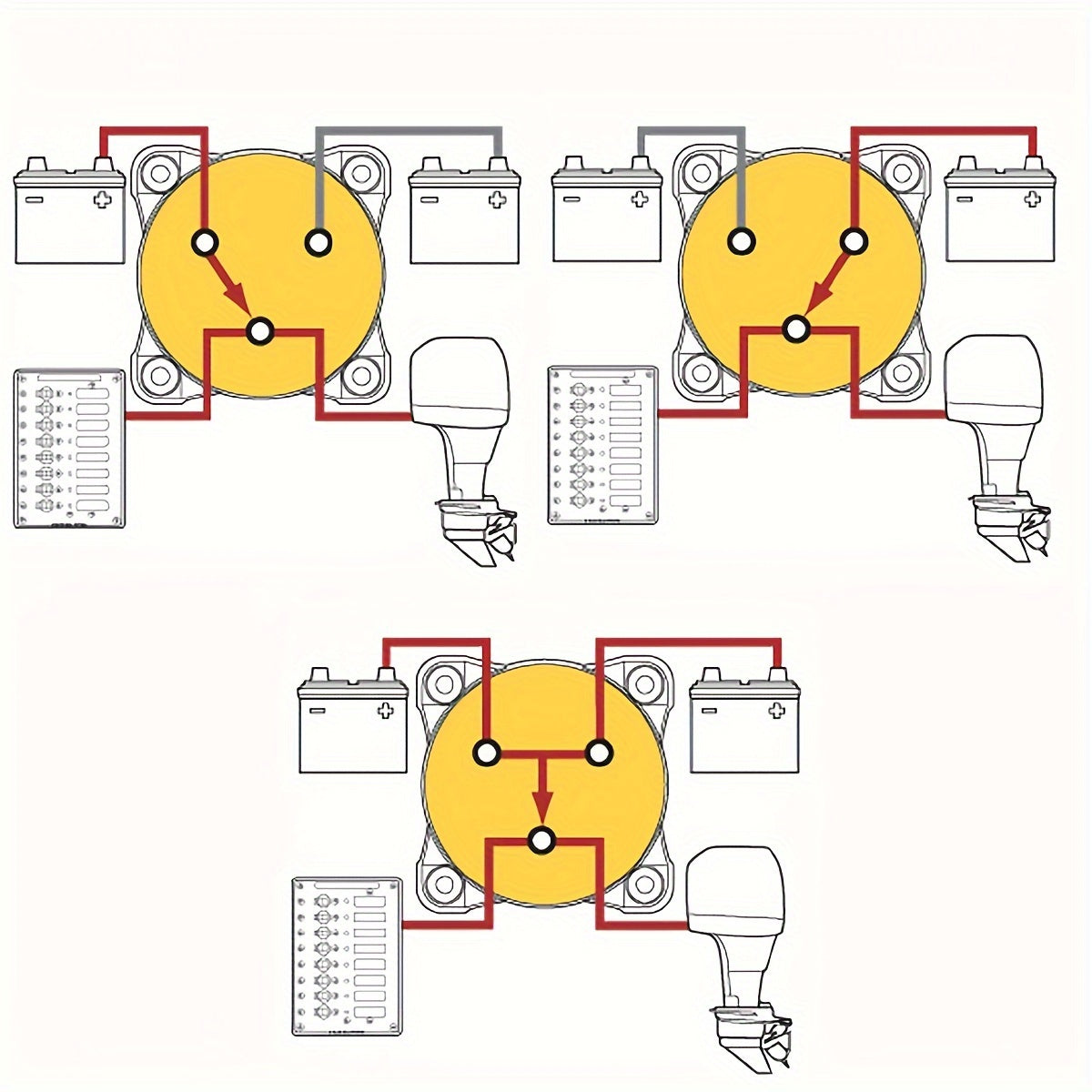

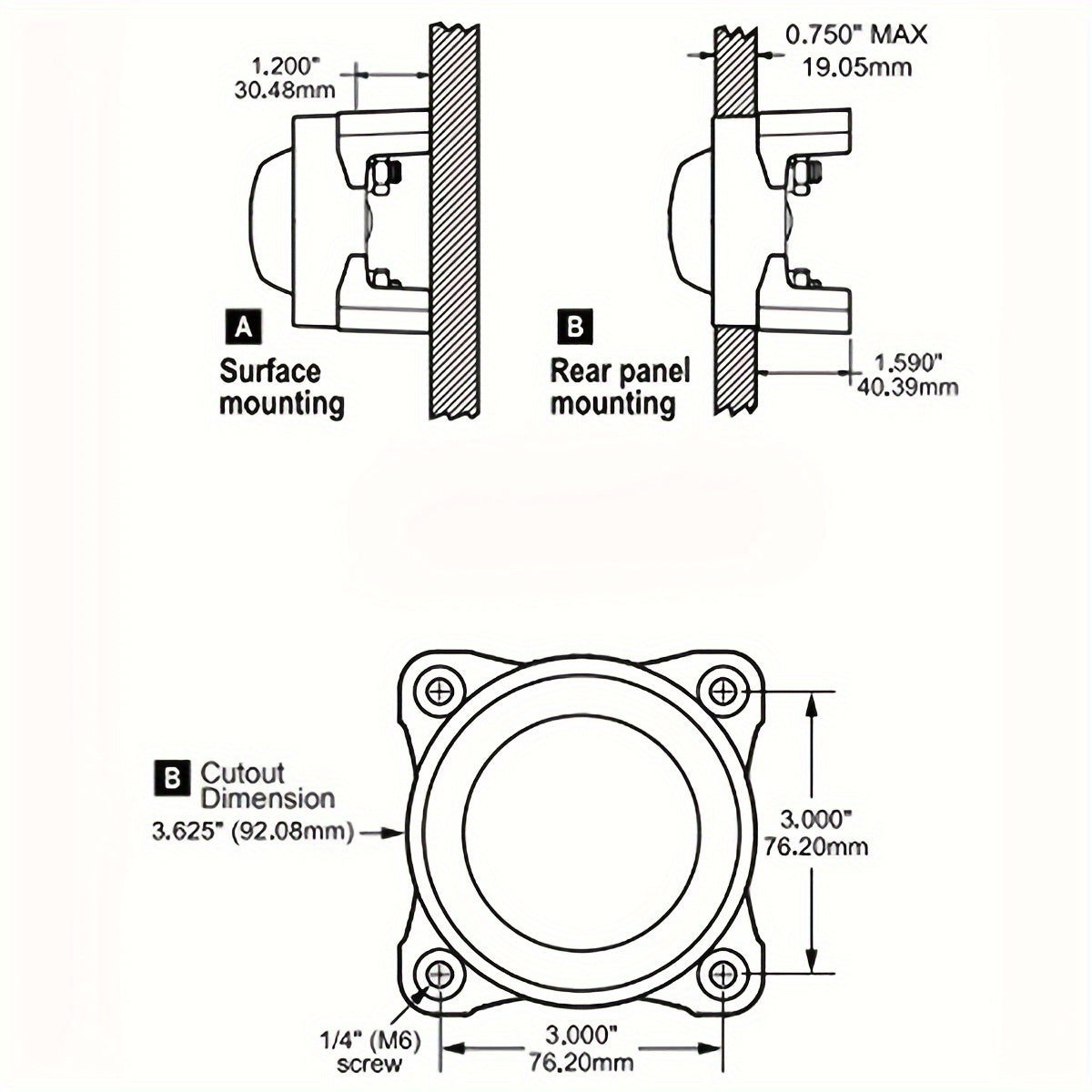

This feature ensures ignition protection, making it safe for use on gasoline-powered boats. The case can be mounted on the surface or the rear panel. It can isolate battery banks to all loads or combine them for all loads. It includes 3/8"-16 tin-plated copper studs for optimal conductivity and resistance to corrosion, accommodating both 3/8" and M10 ring terminals. The make-before-break contact design enables switching between battery banks without any power interruption.
Versatile uses: Compact and elegant design, suitable as the primary power switch for RVs, boats, and heavy equipment.
Package contains: 1 switch and 4 screws.
Important points:
1. The battery switch may function independently or in conjunction with other switches.
2. When in the on/off position, the knob remains fixed, and the switch's state can be altered by rotating it 45 degrees counterclockwise.
3. The adjustable four-sided insert and rear cover prevent short circuits at the connection points, ensuring the switch meets ABYC standards. 4. Installation can be done on the surface or from behind.
