Capable of Forward And Reverse Operation, Suitable for DC Motors with an LED Digital Display And PWM Adjustment for DC 10V-36V, 60A Max
Detailed Overview Accurate Motor Speed Adjustment: Fine-tune the speed of your DC motor effortlessly with our custom Speed Controller. Broad Voltage Compatibility: Our controller supports input voltages between 10V and 55V, providing flexibility for various uses.
Elevated Input Current: Capable of managing up to 60A, our regulator efficiently supports even the most powerful motors.

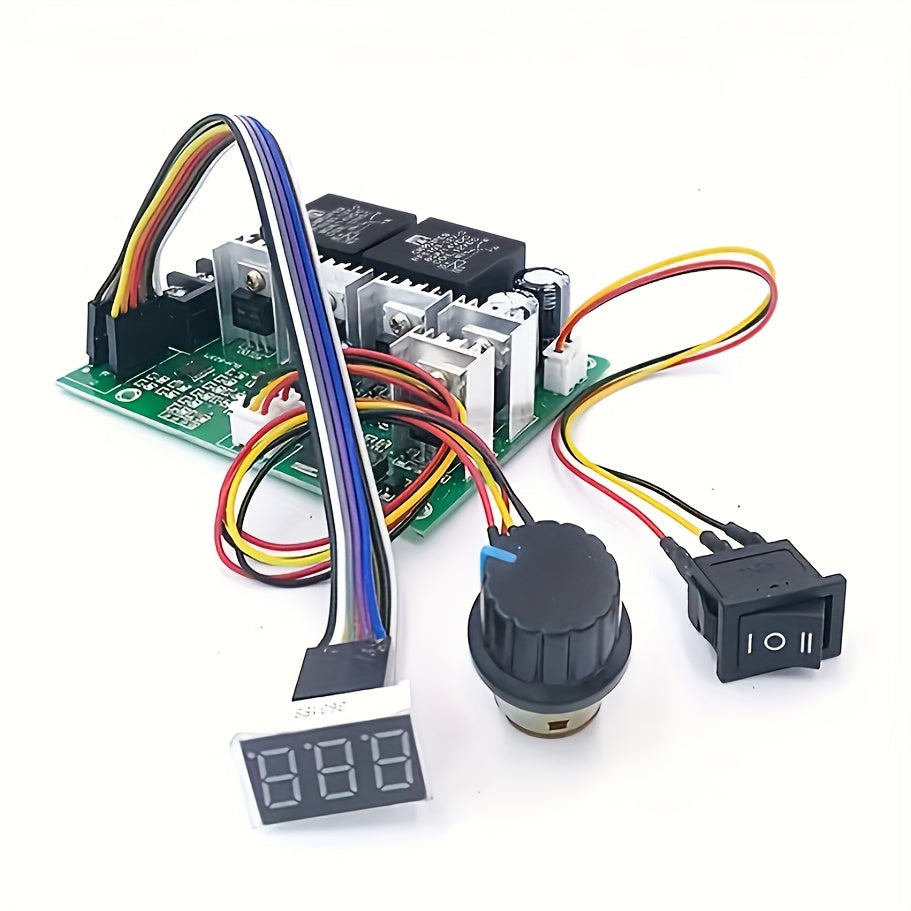

The integrated LED screen allows for simple monitoring and adjustment of your motor's speed.
Variable Speed Range: Our controller enables speed settings from 0 to 100, providing you with total control over the speed of your motor.
Here are the specifications: Input voltage ranges from DC10 to 55V, which corresponds to the motor's rated voltage. The output voltage remains linear when under load. The maximum current is 60A, while the continuous current is 40A; it's important to monitor heat dissipation during prolonged use or to lower the current. The speed control method involves flow adjustment, utilizing a potentiometer for linear control. It is compatible with DC brush motors and supports both forward and reverse rotation. The speed can be adjusted from 0 to 100%, with a control frequency of 15KHZ. The wiring is done via terminals, and the knob specification is 100K, which includes a switch.

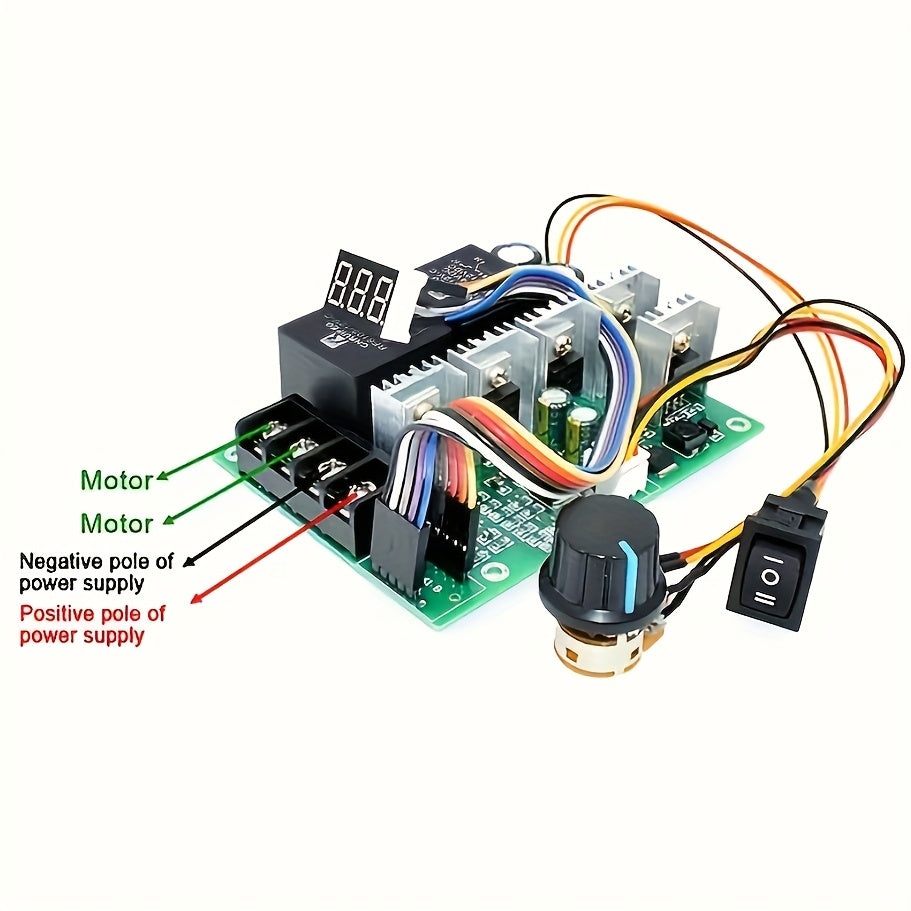

Type of wiring: fence terminal block

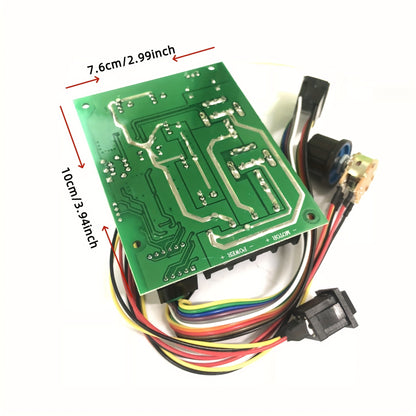

Dimensions of the motherboard:
100MM*76MM*28MM Dimensions of the shell: 110*78*38MM
Contents of the package:
1* Motor Speed Controller
