340LPH E85 Compatible High Flow Fuel Pump (10008964)

Pump Introduction:
Composite Turbine Impeller design brings quiet operation
Offset Inlet easily to install, In-line with outlet
39mm diameter fits most applications
Designed for high output naturally aspirated and forced induction EFI vehicles
For gasoline vehicles (pump life may be diminished when used with E85 fuel)
Can be used with carbureted or EFI applications
Turbine pump mechanism increases durability and can be used in pulse modulated applications.

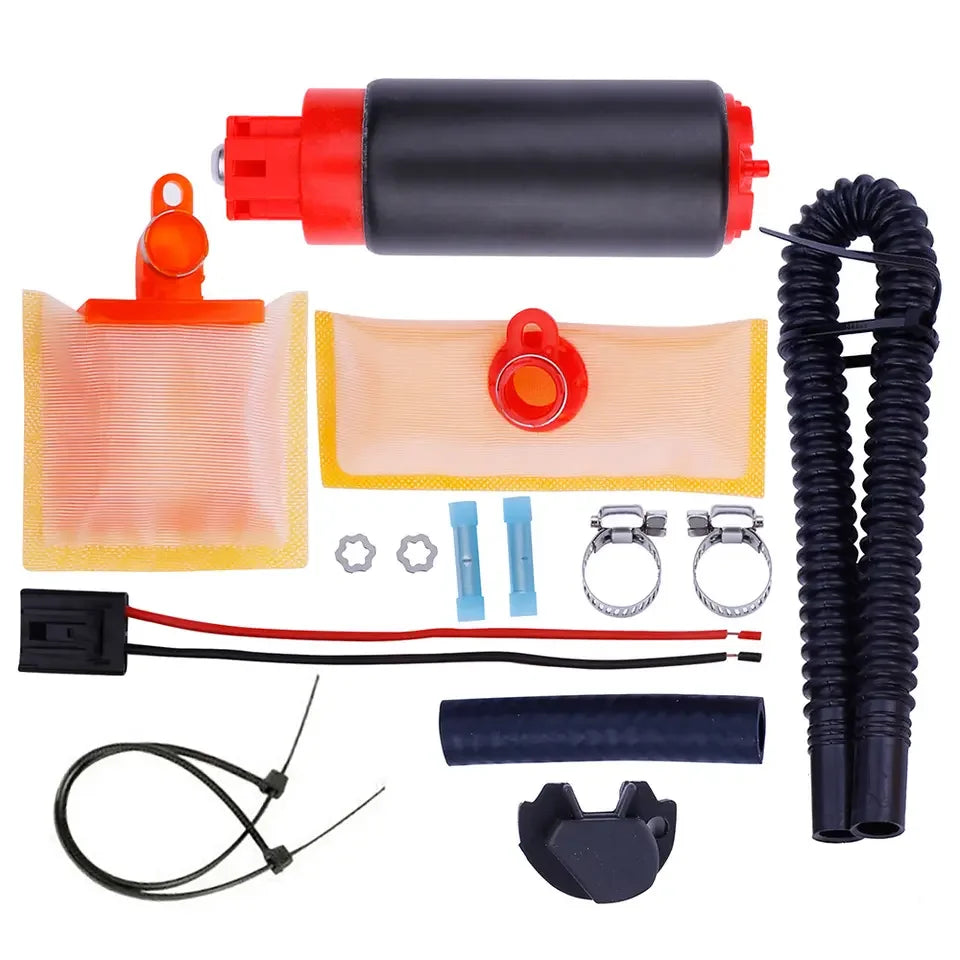

Typical & complete kits exactly same as above title picture showed.

Technical Data:
Min Voltage Input:6V
Max Voltage Input:18V
PRV Activation:0-100PSI
Flow Rate: 340LPH/40PSI(13.5V)
Current(40PSI):<13A(13.5V)
Horsepower Capabilities: Up to 800hp for naturally aspirated engines & 750hp for supercharged or turbo engines.

Mechanical Spec:
Overall Length (tip to tip): 5"(123MM)
Weight:12.6oz (360g)
Length of Pump Body Metal Case: 3 1/8"(80MM)
Pump Body Diameter: (38MM)
Inlet Fitting: 7.7mm ID, 11.0mm OD
Outlet Fitting: 5/16" hose clamp
