24V 30A Violet Series 5-pin Automotive Relay (10008263)

Product features: 30A contact switching capability; with a set of conversion contact forms;

Applications: Heater, fan control, oil pump control, wiper control, Vehicle light source control; automotive air conditioning, electromagnet control, lighting system, linkage, office automation equipment, etc.

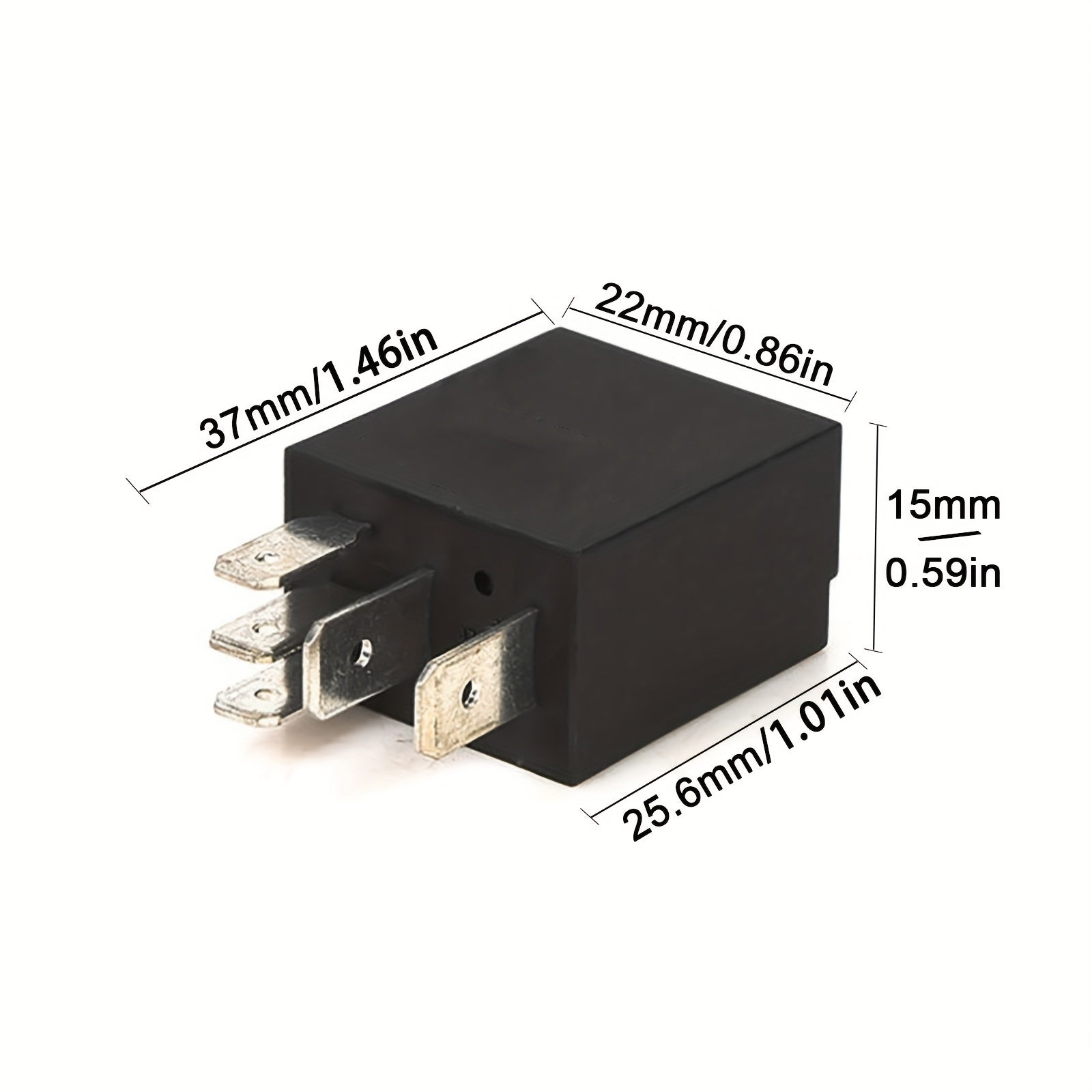

●Outer size length*width*height (mm): 37*22*15

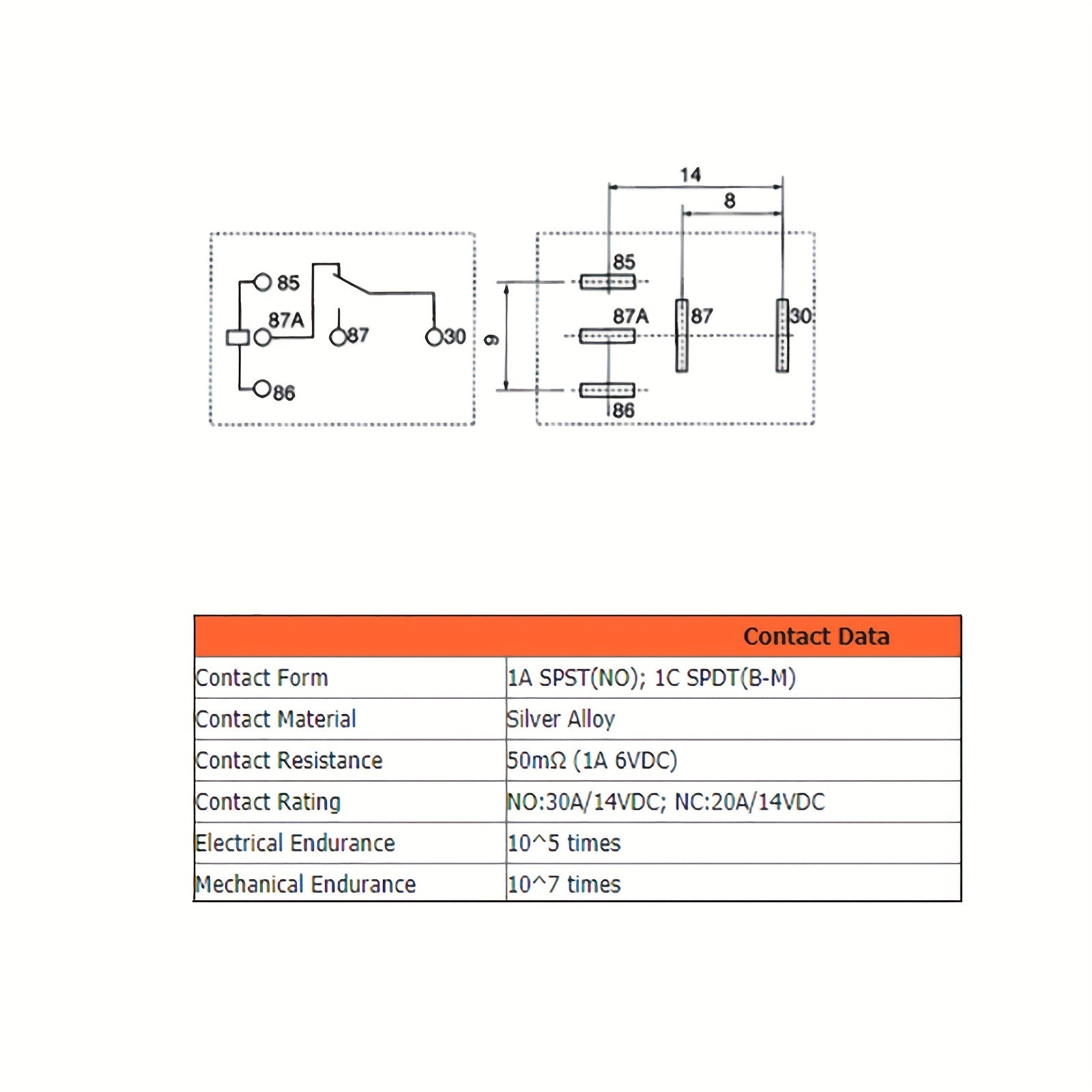

●Contact form: 1A/1C

●Contact capacity: 30A 14VDC/28VDC

●Contact resistance: ≤100mΩ

●Insulation resistance: ≥1,00MΩ

●Lifetime (times): Electrical 1*100000Machinery 1*10000000

● Ambient temperature: -40 ° C ~ +125 ° C

●Installation form: quick connect type, socket type
