52mm/2inch Digital Exhaust Gas Temperature Egt Meter Kit (10008962)

Digital display with red LED.

Used to measure the Exhaust Gas Temp of automobile.

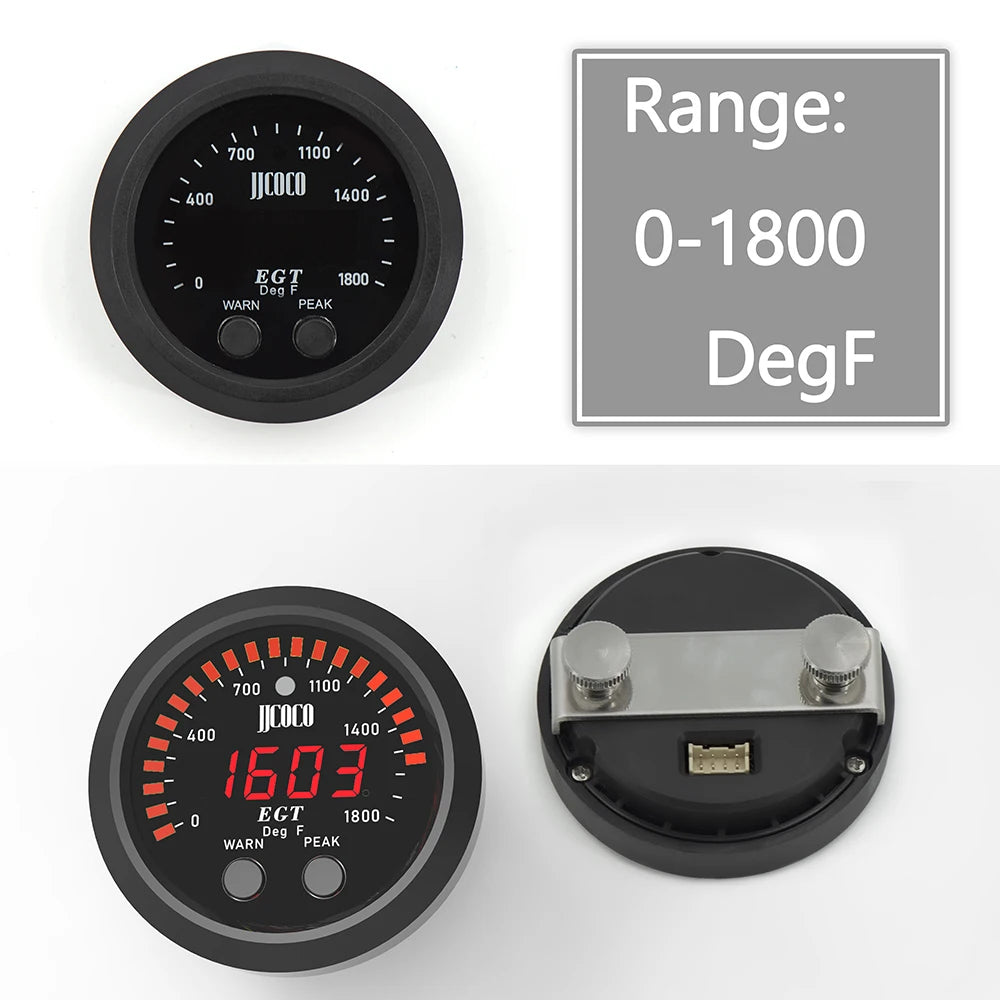

Measurement range is -17~1000 DEG.C(0-1800 DEG.F)

High accuracy and easy operation.

Specification

Power: 12V24v DC, Max. 0.3A

Sensor mounting thread: NPT 1/ 8 "

The meter is an electric meter (which means that the sensor is installed in the engine compartment and the included cable can be returned to the meter).

It has an adjustable warning level (the level at which the screen will start to flash when the configuration arrives).

The installation in this instrument is very simple.

Choose where to install the monitor (most of our buyers only use double-sided tape) and then find the location where the sensor is installed in the engine compartment.

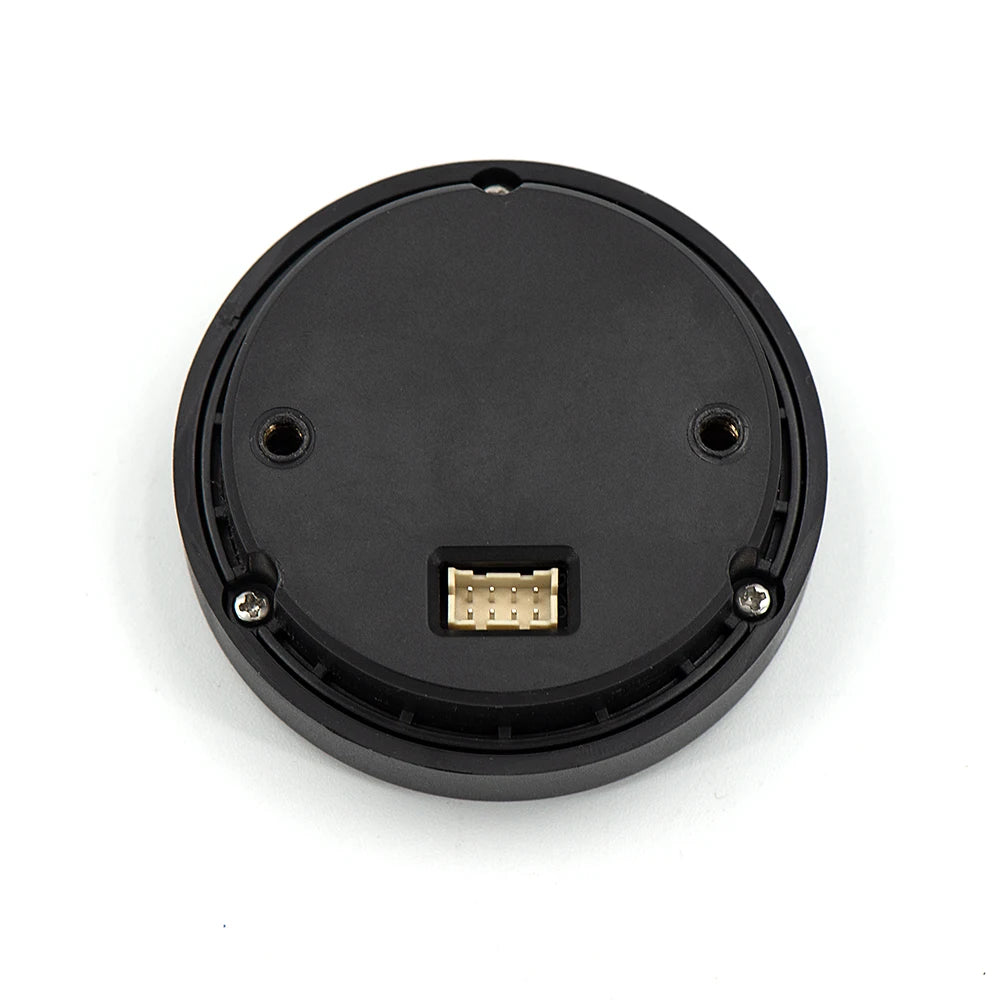

Now connect the monitor and sensor cables with a single click (the connector is waterproof and dust resistant).

Finally, you only need to connect the red wire to the 12 volt + (positive) accessory, the blue wire to 12 volts- (negative) or the vehicle floor.  Fact!

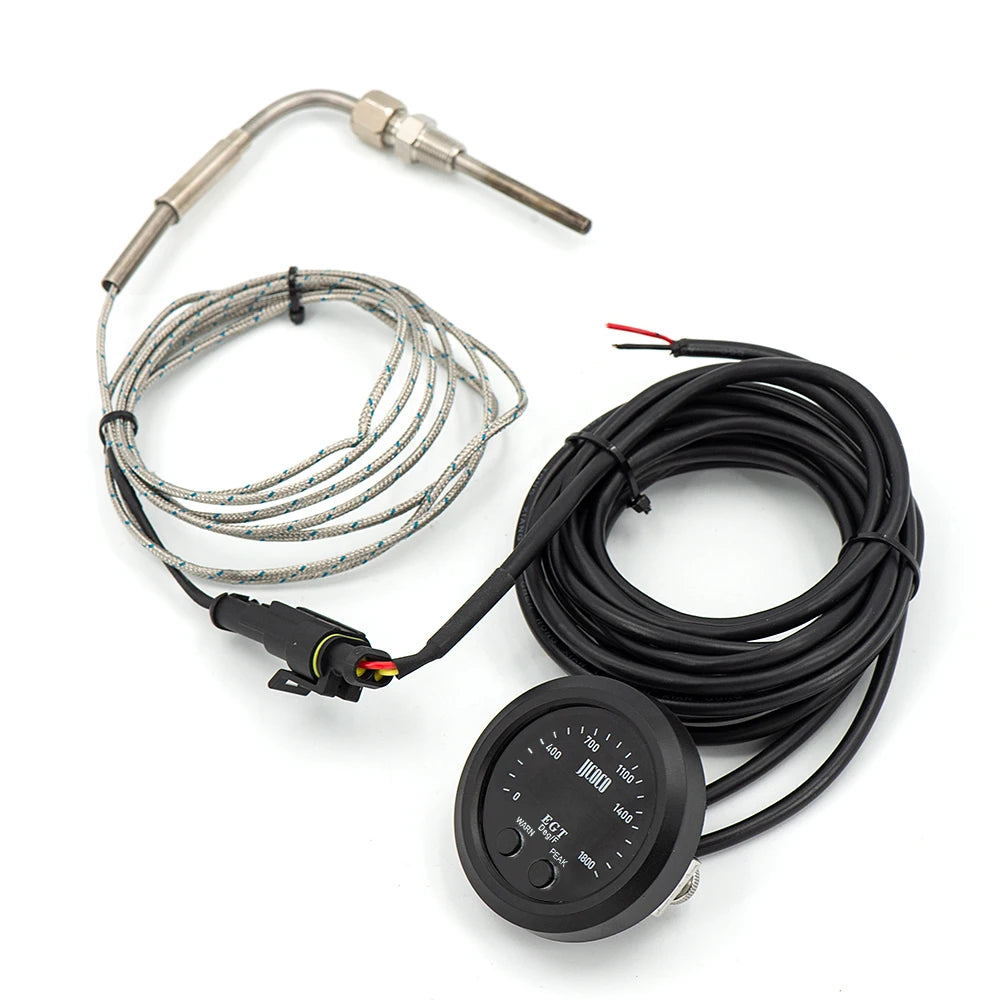

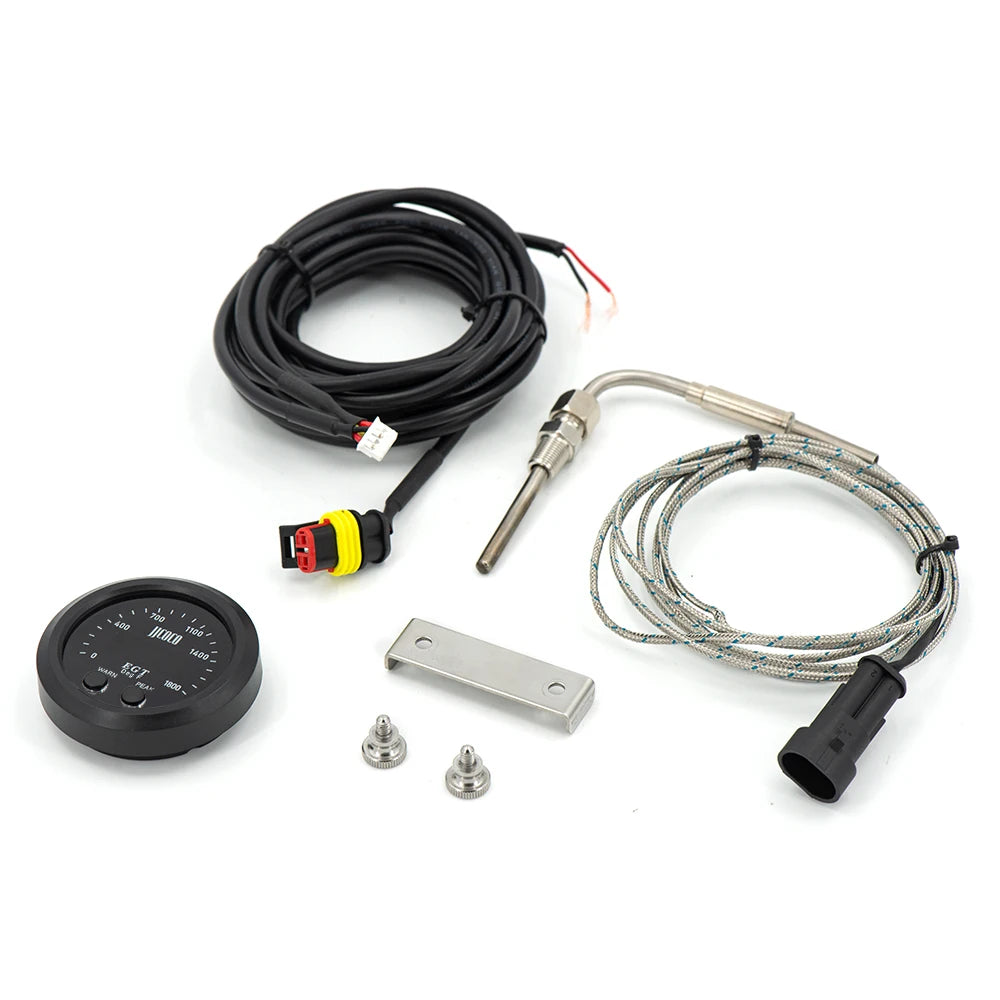

Package including:

1 X exhaust temperature gauge

1 X exhaust temperature gauge sensor

Detail:

EASIER TO READ

Visual improvements include a bright center LED display that is 87% larger than our original digital gauges and provides better readability. A sweeping red LED “needle” lines the edge of the gauge face for quick reference. A 33% overall increase in the gauge face display makes it easier to see at a glance.

SMARTER INTERFACE

RACING Digital Gauges include new technological features that make them easier to use. Two buttons on the faceplate deliver programmability for peak/recall, standard or metric center LED readout and sweeping LED needle, and user-selectable threshold warnings.

EASIER TO MOUNT

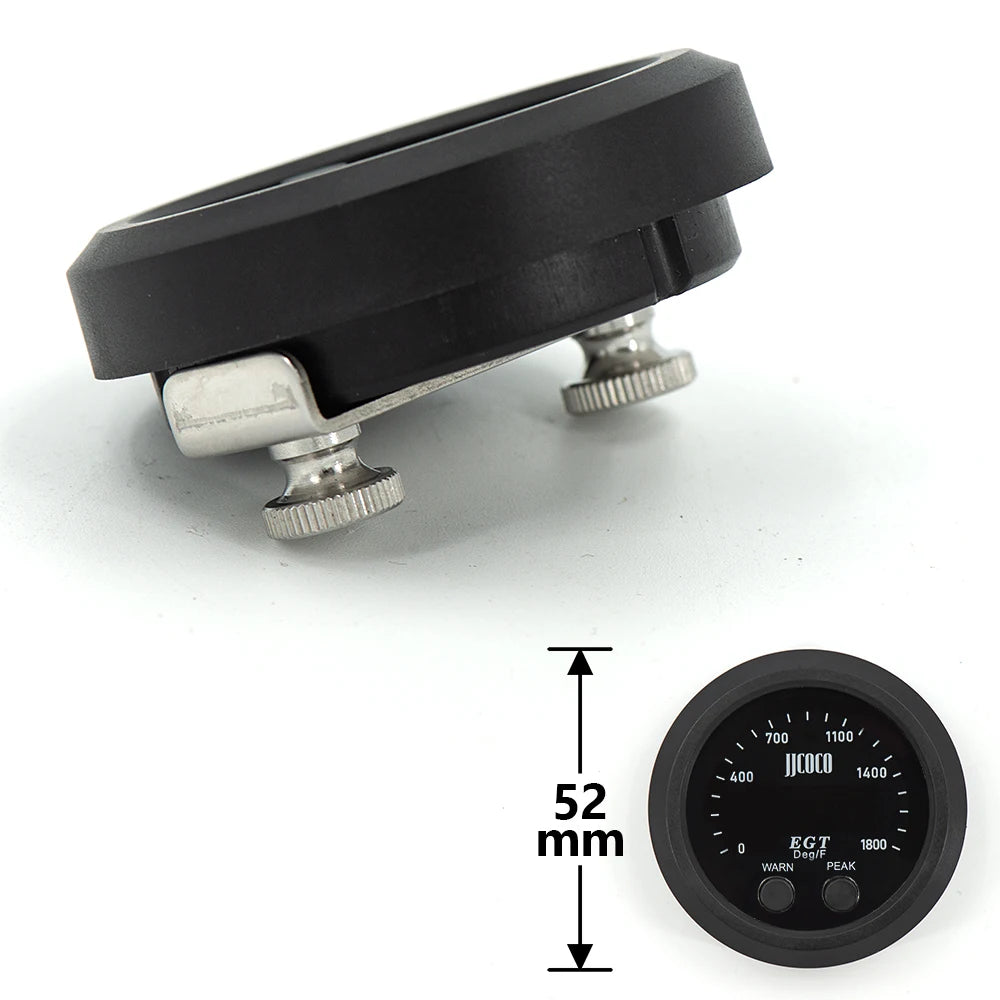

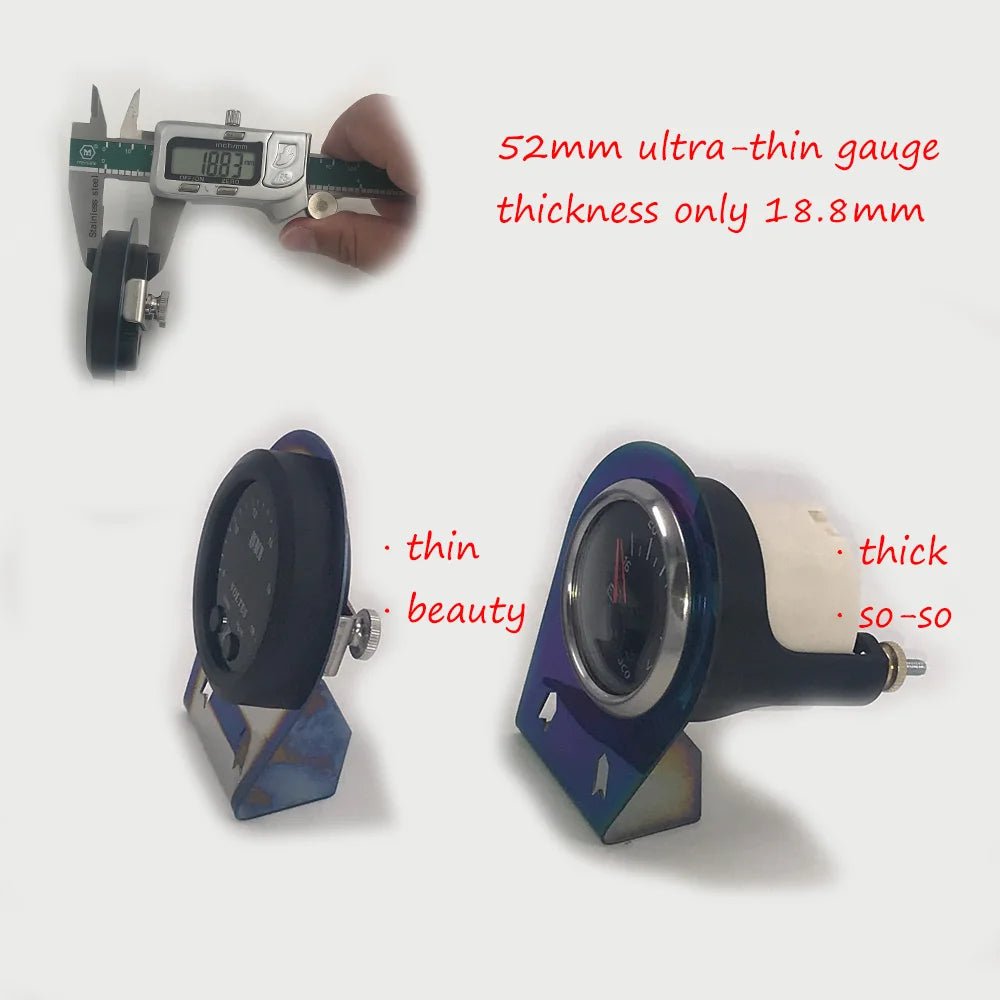

Despite the larger display, RACING Gauges are contained in a standard 2-1/16th-inch (52mm) diameter housing for mounting in a standard gauge pod. Thanks to an advanced single board design, X-Series Gauges have an incredibly slim overall depth of under 18.8mm This shallow cup depth allows Gauges to be mounted practically anywhere.
